Matrix Element H

Cod produs: elementh
Pret: 1.249 RON
  • 24 luni
    Garantie 2 ani
24 RATE Raiffeisen Bank
12 RATE Card Avantaj
6 RATE Alpha Bank
6 RATE Garanti Bank
6 RATE Star BT
Noua placa PCIe Matrix Element H este cea mai avansata interfata de acest tip din lume, beneficiaza de ceasuri Crystek CCHD-575 femto, fiind cel mai performant mod de a conecta un PC de tip desktop la un DAC extern.
Element H dispune de multiple unitati de filtrare pentru sursa de alimentare USB, in constructia careia s-au utilizat condensatori solizi si chip-uri LDO de tensiunea inalta si zgomot redus. Element H elimina in mod eficient zgomotul de frecventa inalta cauzat de sursa de alimentare in comutati a PC-ului. Port-ul USB poate furniza o tensiune maxima de 5V/1.5A pentru toate aparatele audio conectate si ofera protectie suplimentare la scurt circuit

Prezentare generala Matrix Element H

Designed to increase the USB audio quality of your computer, element H increases the data transport quality and reduces the power supply noise, upgrading your PC Hi-Fi system at the source.

Matrix Audio element H USB Interface

Born for Hi-Fi

The element H USB 3.0 interface is designed for increasing the USB audio quality of your computer. It increases the data transport quality and reduces the power supply noise, changing your PC Hi-Fi system from the source.

Matrix Audio element H USB Interface

Femtosecond Clock

element H uses a Crystek CCHD-575 super-low noise femtosecond clock to coordinate with the USB 3.0 bridge chip from Texas Instruments and open up an independent data channel for the USB audio stream. This bypasses the USB controller integrated in the motherboard to avoid sharing data channels with other USB devices. That means a dedicated channel for unhindered audio performance.

Matrix Audio element H USB Interface with femtosecond clock

High-Quality Bus Power Supply

The USB power supply of the element H integrates multiple filter units, uses solid capacitors and low noise high current LDO chips. Even if you use the USB internal power supply, it also can effectively eliminate the high-frequency noise caused by the PC switching power. The USB port can supply a maximum current of 5V/1.5A for all connected audio devices. It can also prevent devices from overloading or short circuiting.

Matrix Audio element H components

External Power Supply Supported

SATA power uses 12V and is required when USB devices are connected to the element H. Internal and external power supplies are supported on element H. Choose your power supply configuration by sliding the switch on the side panel. You also can turn off the USB bus power supply for devices that contain an independent power supply.

INT: Internal power supply - The element H will draw power for the USB device from the Sata 12V connection. The chips of the element H Card will still use 3.3V PCI-E bus power.

EXT: External power supply - The element H will draw power for the USB device from the external power source. The chips of the element H Card will still use 3.3V PCI-E bus power.

OFF: No power supply - The element H will stop outputting power from the USB bus. The element H card will still function. The chips of the element H Card will still use 3.3V PCI-E bus power. Do this when a USB DAC is connected to element H and does not need USB bus power. (These DACs provide their own USB bus power.)

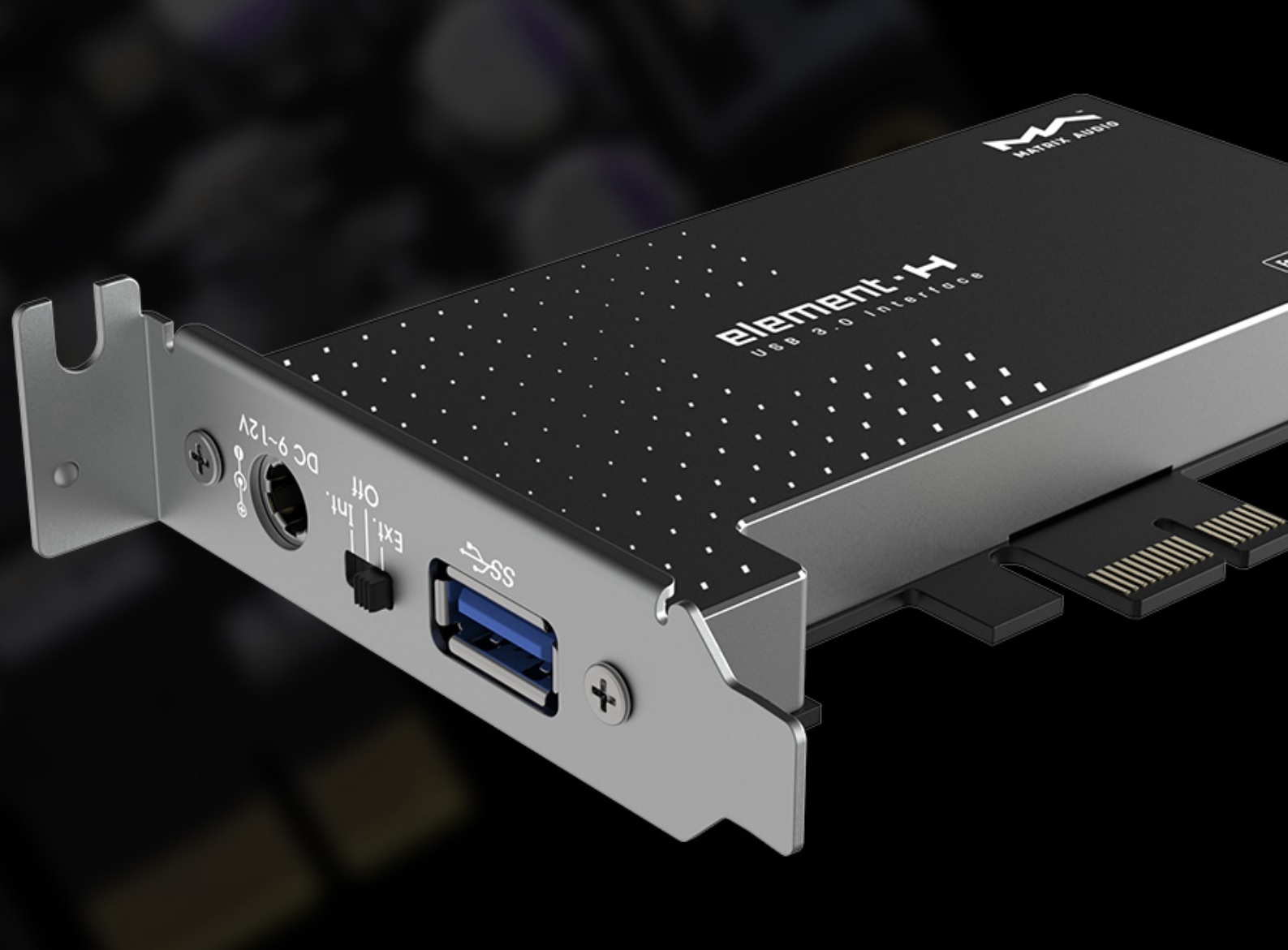

Power switch on Matrix Audio element H USB Interface

Please note, although some USB DACs do not use USB bus power it still needs a 'device startup signal.' In this case, keep the SATA power connected to ensure that each startup can be successful, otherwise the USB DAC device may not be found. In that case you should use the 12v SATA power for your card.

Matrix Audio element H USB Interface

Superb Performance & Stylish Design

With four-layer PCB of high-speed circuit design standard, strictly in according with high-speed circuit design specifications. The circuit meets the differential pair impedance standard and the equal line length demand. The CNC aluminum chassis prevents the radiated interference effectively, giving consideration to the heat dissipation requirements of the power supply chip on board.

Matrix Audio element H circuit board
