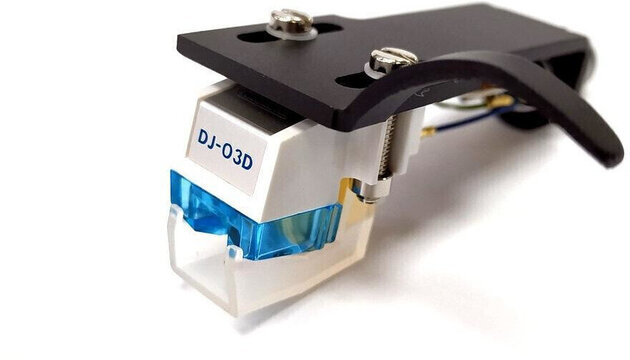

Doza Nagaoka DJ-03 HD

Compatible with most DJ turntables such as the Technics SL1200, Lenco, Pioneer, Denon or Reloop

The Nagaoka DJ-03HD MM phono cartridge is made for DJs concerned about their set’s sound quality.

The Nagaoka DJ-03HD phono cartridge is designed with precision to obtain excellent resistance to jumps and ensure continuous contact with the record even with scratches. The fluorescent tip allows the DJ to easily place the stylus in the desired part of the groove. The generator was optimised to provide important output level and very wide bandwidth. It’s coiled with precision in Japan by Nagaoka. Its combination with a polished conical diamond allows to provide great clarity, excellent readability and nice dynamics.

Nagaoka stands for warm sound with crystal-clear highs. These qualities and those of Hi-Fi cartridges can be found with the DJ-O3HD. This cartridge is scratch compatible, meaning that the tip was designed to read the groove back and forth. It can withstand important tracking force (up to 5 g) for enhanced tracking capability.

The Nagaoka DJ-03HD is the only model of the Japanese manufacturer entirely dedicated to DJs. It’s one of the best DJ cartridges in terms of reproduction. It also provides great transparency and excellent recording readability with very low noise level and no distortion.

Principle: Moving magnet (MM) special DJ

Output level: 6 mV (5 cm/s)

Frequency response: 20 – 20,000 Hz

Channel separation: 20 dB (1 kHz)

Channel balance: < 1.0 dB

Impedance: 47 kΩ

Capacitance: 100 pF

Tracking force: 3 - 5 g

Compliance: 16 µm/mN

Cantilever: aluminium

Stylus: 0.6 mil conical and bonded diamond

Weight: 5.1 g

Weight with headshell: 15.1 g
