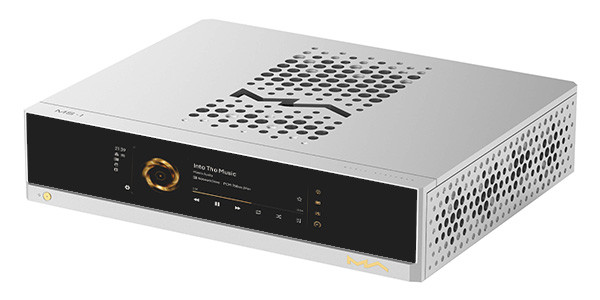

Matrix MS-1 PRE
DESCRIERE
Matrix MS-1 PREStreamer WiFi Airplay 2 DLNA Balanced DAC 2x AK4499EX+AK4191 PCM 24Bit 768kHz DSD512 MQA

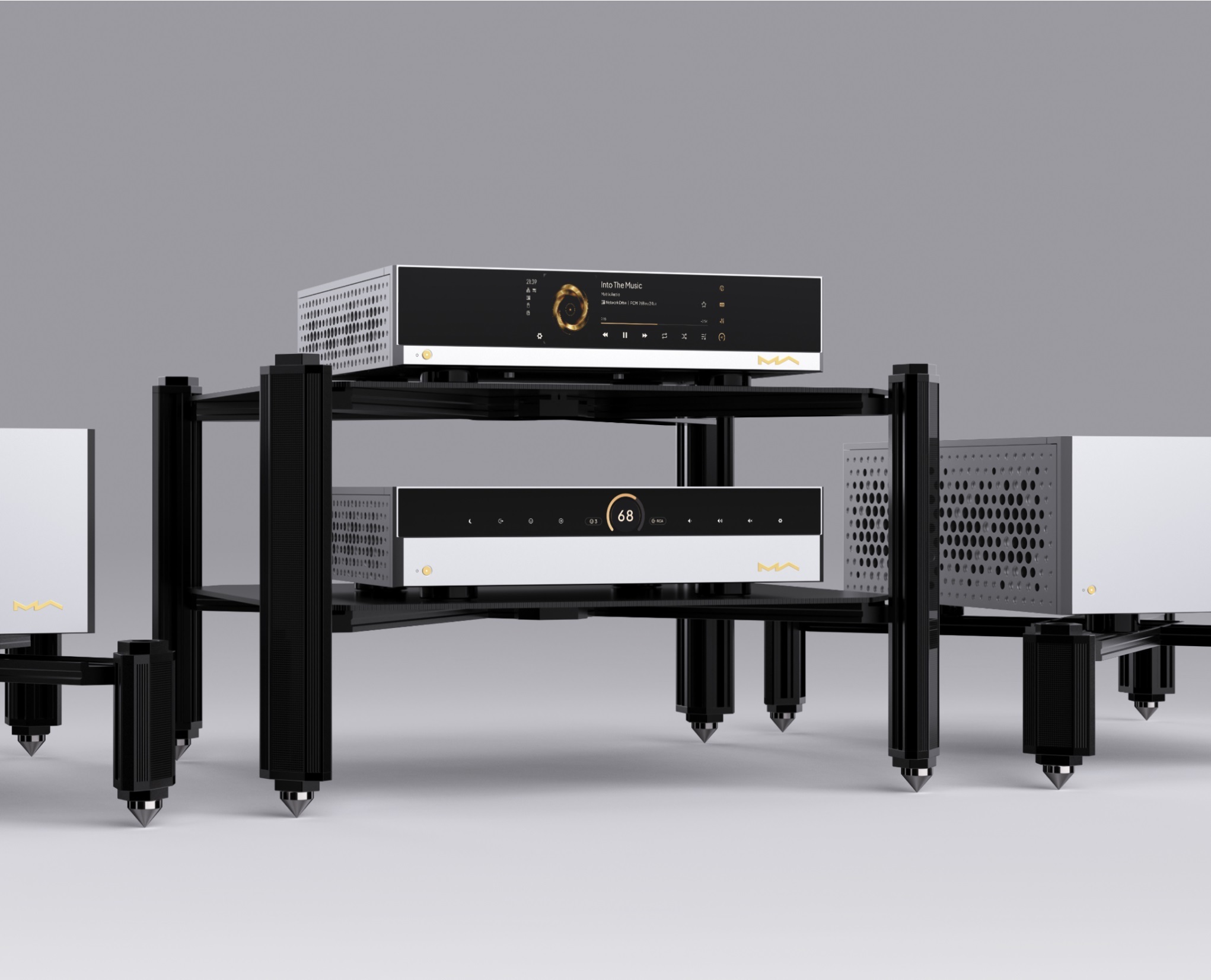

The Matrix MS-1 PRE audio network player is an extremely complete streamer that forms part of the brand's M series along with the MP-1 preamplifier and MA-1 power amplifier. This new series features a new design, both in terms of appearance and internal structure. Indeed, the MS-1 PRE network player features a balanced structure with a combo of AKM AK4499EX + AK4191 chips per channel, enabling it to support high-resolution PCM up to 24bit 768kHz, native DSD up to DSD512 and MQA streams. This version of the streamer also features preamplified outputs with volume control. An attractive display with touch-sensitive controls and the MA Player solution, coupled with the MA Remote App 4.0, provide a pleasant user experience. Numerous digital inputs (USB-B, Toslink optical, SPDIF coaxial, USB-A storage, SSD slot) and analog inputs (XLR balanced, RCA and phono) enable the Streamer MS-1 PRE to be integrated into any audio system configuration. There's also an I2S LVDS input and output on HDMI port, a 10MHz clock connector and a trigger input and output. As for line outputs, the essentials are there, with stereo RCA and stereo balanced XLR. With the MS-1 PRE, Matrix unveils an extremely versatile, high-performance network player that will delight the most demanding audiophiles.

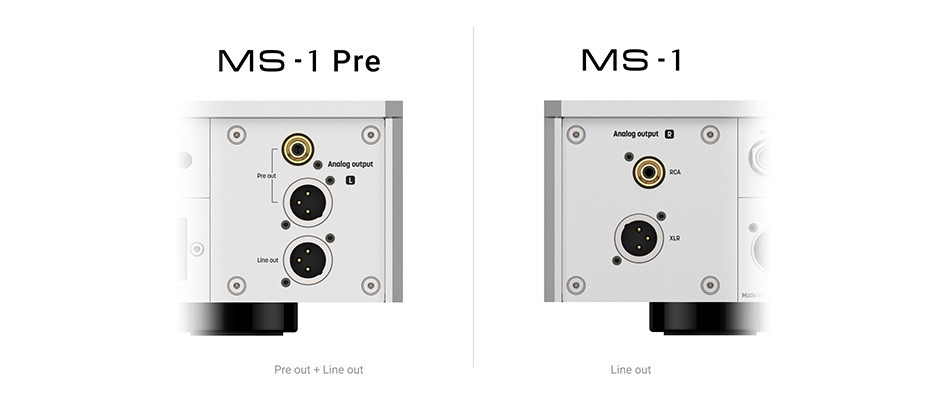

MATRIX MS-1 preamplifier version: the MS-1 PRE
The MS-1 PRE features an integrated preamplifier with resistor array volume control. This preamplifier is itself the result of the sum of numerous audiophile components, such as multi-stage operational amplifiers offering +10dB gain and enabling the MS-1 PRE to output a signal of up to 16Vrms. This makes it possible to connect the MS-1 PRE directly to a power amplifier or active speakers. In terms of technical performance, the MS-1 PRE's integrated preamplifier matches the performance of the network player. In fact, it offers a very low level of distortion with excellent channel coherence, even at low volume levels. In addition to preamplified RCA and XLR outputs, the MS-1 PRE also features a fixed XLR output (5Vrms).

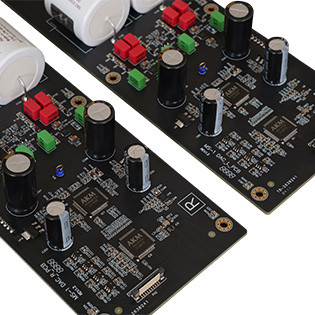

Matrix MS-1 PRE: dual AKM AK4499EX+AK4191 DAC combo
The MS-1 PRE is the first product of the brand based on the AKM AK4499EX+AK4191 high-end DAC chip solution. Each AKM chip combo works independently per channel for an unrivalled level of precision. The MS-1 PRE's architecture is therefore balanced, with dual-mono DAC operation. This enables the MS-1 PRE to process signals over a wide dynamic range and retain the finest details of the original signal. It supports high-resolution PCM 24bit 768kHz, native DSD up to DSD512 and MQA sampling rates.
Matrix MS-1 PRE MA PLAYER: a sophisticated interface

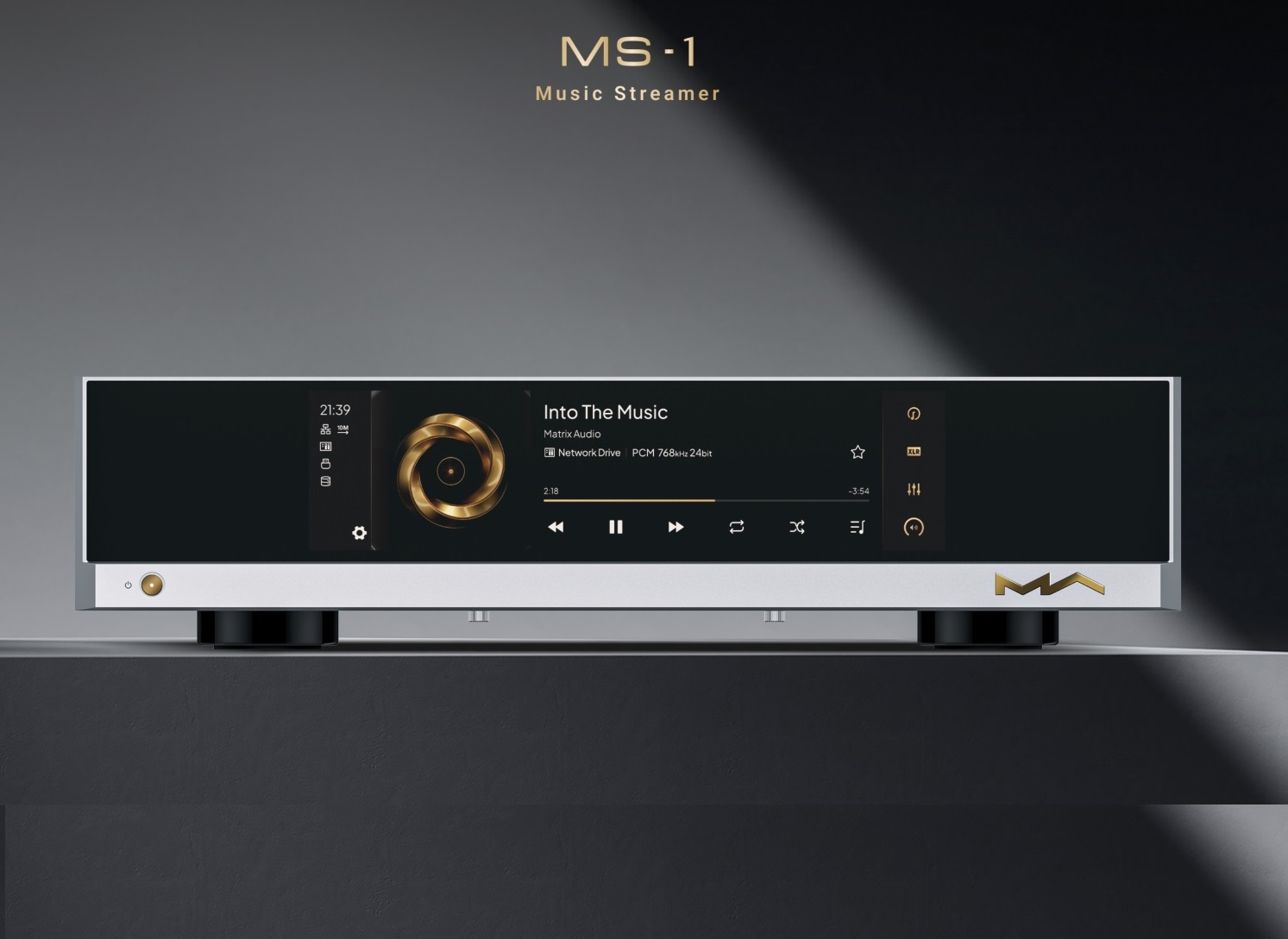

The soul of the MS-1 PRE network player lies largely in its MA Player interface, a Linux-based software optimized and specially developed for audio applications. On the MS-1 PRE, the on-screen interface gives you access to all the information and commands essential to a pleasant user experience. As well as being ergonomic, this interface is also aesthetically pleasing.

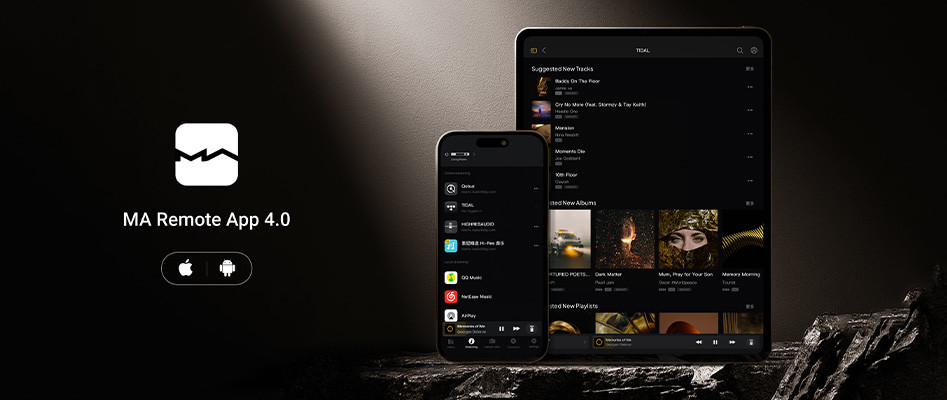

Matrix MS-1 PRE: MA Remote App 4.0
To complete the MS-1 PRE interface, Matrix Audio gives you access to its MA Remote App 4.0. This app lets you control your streamer remotely, whether from your Android or IOS smartphone. This app also gives you access to numerous streaming services, as well as to the configuration of your Hi-Fi device.
Matrix MS-1 PRE: a multitude of sources and digital inputs
The MS-1 PRE streamer gives you access to a multitude of audio sources. These include numerous local network streaming services such as Airplay 2, UPnP, DLNA, Spotify Connect, Tidal Connect, as well as high-resolution online streaming services such as HighRES AUDIO, Tidal and Quobuz. Of course, you can also take advantage of the many existing online radio stations (Radio Paradise, VTuner, etc.) and your locally stored files on SSD, USB-Disk and local NAS.

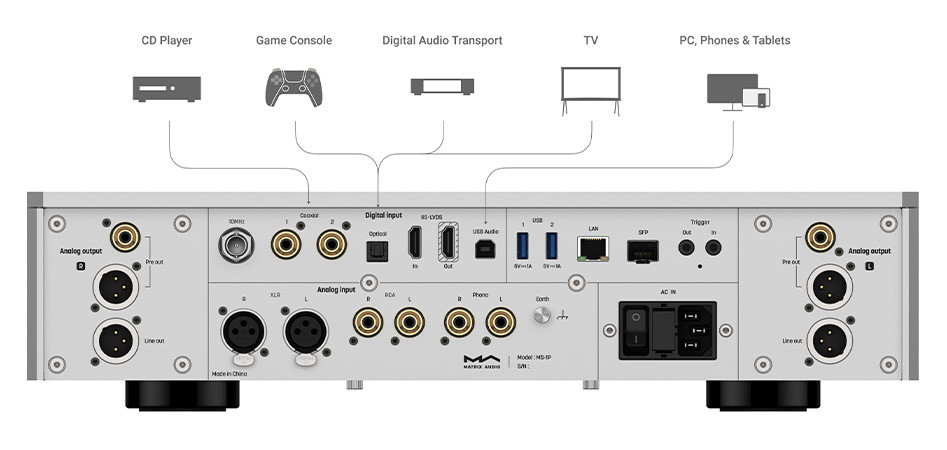

On the rear of the MS-1 PRE, numerous digital inputs allow you to connect it to any type of source, such as a CD player, video game console, TV and, of course, your computer, tablet and smartphone.

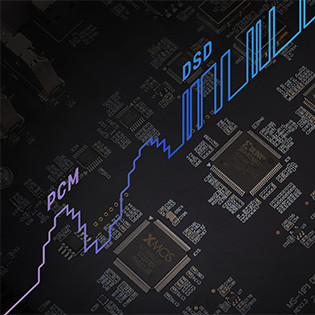

Matrix MS-1 PRE: PCM resampling and DSD conversion
An asynchronous PCM oversampling and DSD conversion system enables all audio data to be processed digitally. Thanks to asynchronous resampling and interpolation operations, unwanted noise is isolated and detail enhanced. The data is then converted to DSD, enhancing the density and depth of the final sound reproduction. Different configurations of oversampling processing and conversion between PCM and DSD are available to let you experiment with the possible differences in the final rendering of your audio signal. You can adjust these settings according to your preferences, but also according to the type of music being played.

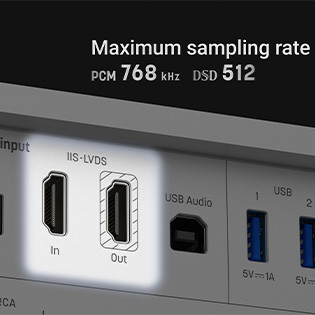

Matrix MS-1 PRE: I2S LVDS HDMI input/output
To complete the MS-1 PRE's digital interface, Matrix has incorporated an I2S LVDS input and output port into its streamer. The I2S LVDS output port lets you connect the MS-1 PRE to an external DAC to try out other audio system configurations and modify your listening experience. Signal from sources connected to the MS-1 PRE's various analog and phono inputs can also be retrieved via the I2S LVDS port.

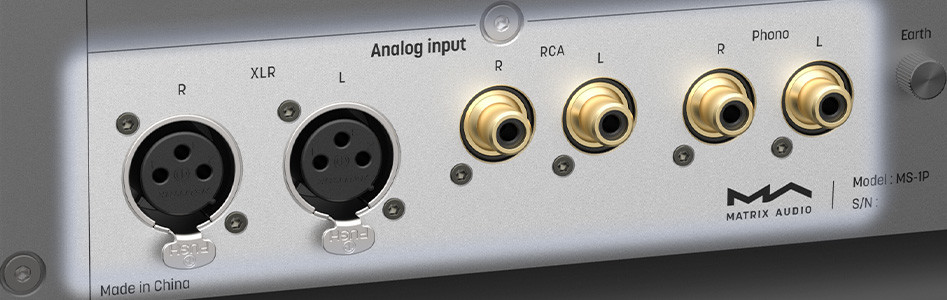

Matrix MS-1 PRE: analog inputs
The complete MS-1 PRE streamer features several analog inputs: balanced stereo XLR, stereo RCA and phono. The phono input supports MM and MC cells for compatibility with any vinyl turntable. The incoming signal on the analog inputs is converted into a digital signal using a high-performance ADC and PCM filter.

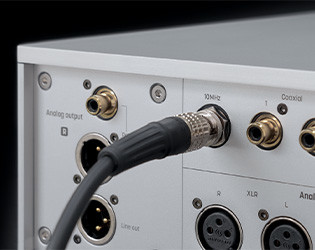

High-precision clock
A high-precision internal clock with low phase noise allows extremely low jitter of 45fs in real time. However, if you have a more accurate external 10MHz holorge, you can still use it with the MS-1 PRE.

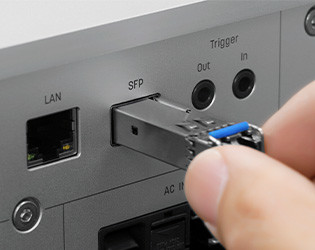

LAN and SFP network port
A LAN network port is complemented by an SFP port, providing high-frequency interference isolation via a fiber-optic connection. Fiber optics provide electrical isolation between your network devices and the MS-1 PRE, ensuring interference-free sound.

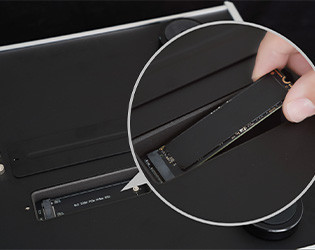

SLOT SSD
An NVMe SSD slot means you don't need an external hard drive. Storage can be carried out via network sharing, or by copying and pasting from external storage to SSD storage using the MA Remote application.

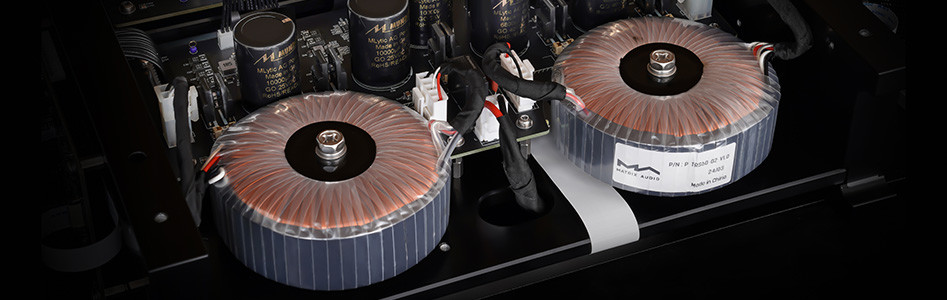

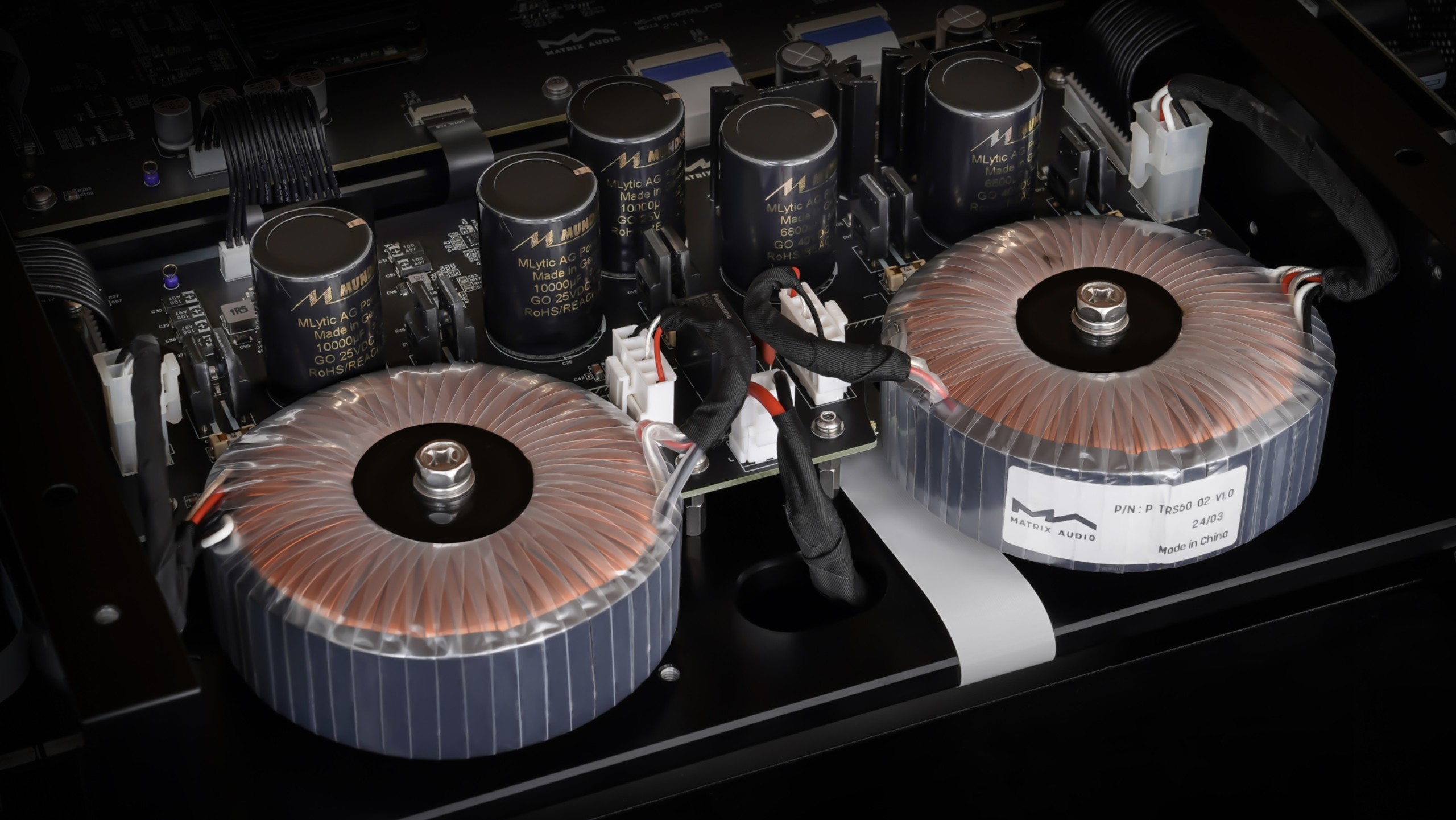

Matrix MS-1 PRE: a high-performance power supply stage
Matrix chose to integrate two high-power toroidal transformers into the MS-1 PRE. These toroidal transformers feature square copper wires for greater available conductive surface area, higher current capacity and lower resistance. This results in better transient response and a certain richness in low frequencies. Mundorf M-Lytic AG series filter capacitors and a battery of low-noise LDOs provide a clean, stable power supply to each MS-1 PRE circuit unit.

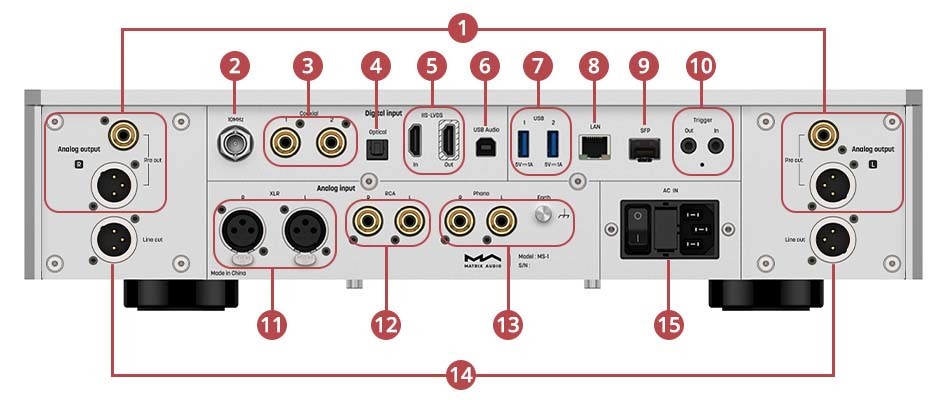

MS-1 PRE streamer overview
| 1 | RCA/XLR stereo Pre-out (variable) |
| 2 | External clock input 10MHz |
| 3 | 2x Coaxial input |
| 4 | Optical Toslink input |
| 5 | I2S LVDS input/output via HDMI |
| 6 | USB-B input |
| 7 | 2x USB-A Host input (storage) |
| 8 | RJ45 Ethernet LAN port |
| 9 | SFP network port |
| 10 | Trigger IN/OUT |
| 11 | Balanced XLR input |
| 12 | RCA input |
| 13 | Phono input |
| 14 | Balanced XLR Line output (fixed) |
| 15 | Switch ON/OFF - Fuse - IEC power supply |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Streamer / DAC |
| DAC chip | 2x AKM AK4499EX + AK4191 |
| Inputs | 1x USB-B 1x Optical Toslink 2x Coaxial 1x I2S LVDS via HDMI 2x USB-A Host port (storage) 1x SSD slot WiFi 1x XLR balanced analog input 1x RCA analog input 1x Phono input |
| Outputs | 1x XLR balanced output 1x RCA output 1x I2S LVDS output via HDMI |
| External clock inputs | 10MHz / 50 ohm clock |
| Trigger | In: DC 6-12V <10mA Out: DC 12V/50mA max. |
| Network | LAN 10/100/1000 Mbps SFP 10/100/1000 Mbps |
| USB-A compatibility (storage) | USB 3.0 5V 1.5A (FAT, FAT32, exFAT, NTFS, compatibility with all storage media not guaranteed) |
| SSD storage expansion | M.2 2280 NVMe PCIe SSD |
| Supported samples rates | Toslink optical and coaxial: PCM up to 24bit 192kHz I2S LVDS: PCM up to 32bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 USB-B: PCM up to 24bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 and MQA |
| I2S LVDS output sampling rate | PCM up to 32bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 |
| Interface | MA player |
| Application | MA Remote App |
| Supported audio formats | MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE |
| Supported network protocols | AirPlay 2 DLNA/UPnP TIDAL Connect Spotify Connect vTuner Radio Paradise |
| ANALOG INPUTS | ||
|---|---|---|
| XLR Balanced | Input impedance | 40kΩ |
| SNR | 118dB A-weighted | |
| THD+N | < 0.00026% @ 1k < 0.00030% @ 20Hz-20kHz | |
| Frequency reponse | 20Hz-20kHz (±0.3 / -3dB @ 46kHz) | |
| Crosstalk | -135dB | |
| Input level | 4.9Vrms Max. | |
| RCA Single-ended | Input impedance | 20kΩ |
| SNR | 110dB A-weighted | |
| THD+N | < 0.00060% @ 1k < 0.00100% @ 20Hz-20kHz | |
| Frequency response | 20Hz-20kHz (±0.3 / -3dB @ 46kHz) | |
| Crosstalk | -125dB | |
| Input level | 2.35Vrms Max. | |
| Phono | Cell compatibility | MM and MC |
| MM input impedance | 47kΩ/100pF | |
| MM gain | +45dB | |
| MC input impedance | 100Ω | |
| MC gain | +65dB | |
| LINE OUTPUT | ||
|---|---|---|
| XLR Balanced | Output impedance | 20kΩ |
| Output level | 5Vrms Fixed | |
| SNR | 131dB A-weighted | |
| THD+N | < 0.000068% @ 1k < 0.000075% @ 20Hz-20kHz | |
| Frequency response | 20Hz-20kHz (±0.05 / -3dB @ 85kHz) | |
| Crosstalk | > -150dB | |
| PRE-OUT OUTPUTS | ||
|---|---|---|
| XLR Balanced | Output impedance | 40Ω |
| Output level | 0-16Vrms Variable | |
| Gain | +10dB | |
| SNR | 131dB A-weighted | |
| THD+N | < 0.000068% @ 1k < 0.000075% @ 20Hz-20kHz | |
| Frequency response | 20Hz-20kHz (±0.05 / -3dB@85kHz) | |
| Crosstalk | > -150dB | |
| RCA Single-ended | Output impedance | 16Ω |
| Output level | 0-8Vrms Variable | |
| Gain | +10dB | |
| SNR | 127dB A-weighted | |
| THD+N | < 0.000076% @ 1k < 0.000085% @ 20Hz-20kHz | |
| Frequency response | 20Hz-20kHz (±0.08 / -3dB@83kHz) | |
| Crosstalk | > -139dB | |
| General | |
|---|---|
| Power supply | AC 220V-240V 50/60Hz |
| Max. power consumption | < 60W |
| Standby power consumption | < 5W |
| Dimensions | 430 x 353 x 106mm |
| Weight | 14.6Kg |
| Color | Silver |
| Package | 1x Matrix MS-1 PRE network player 1x RM4B remote control 1x Power supply cable |
