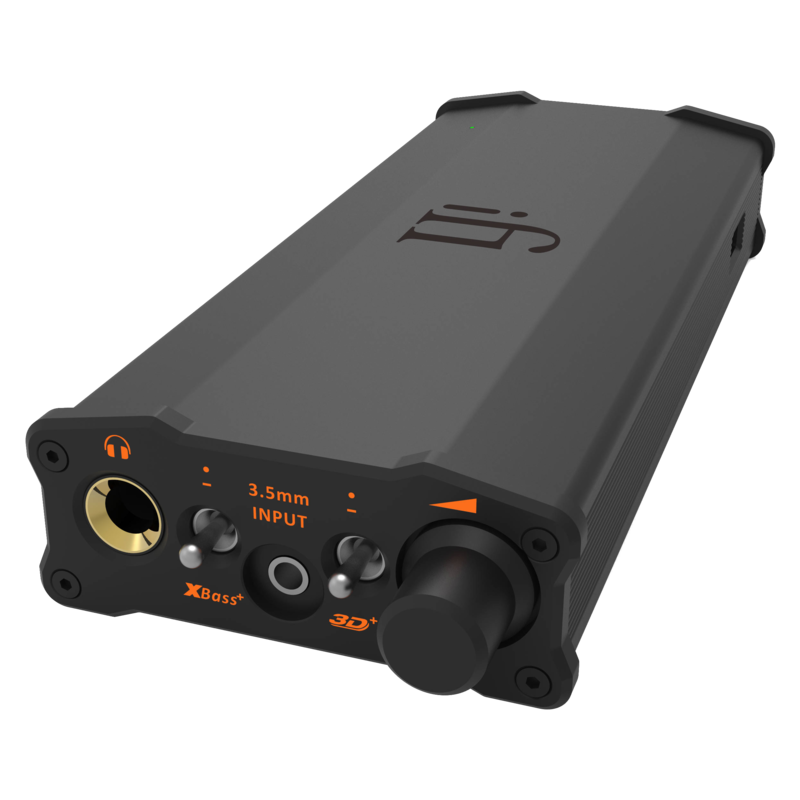

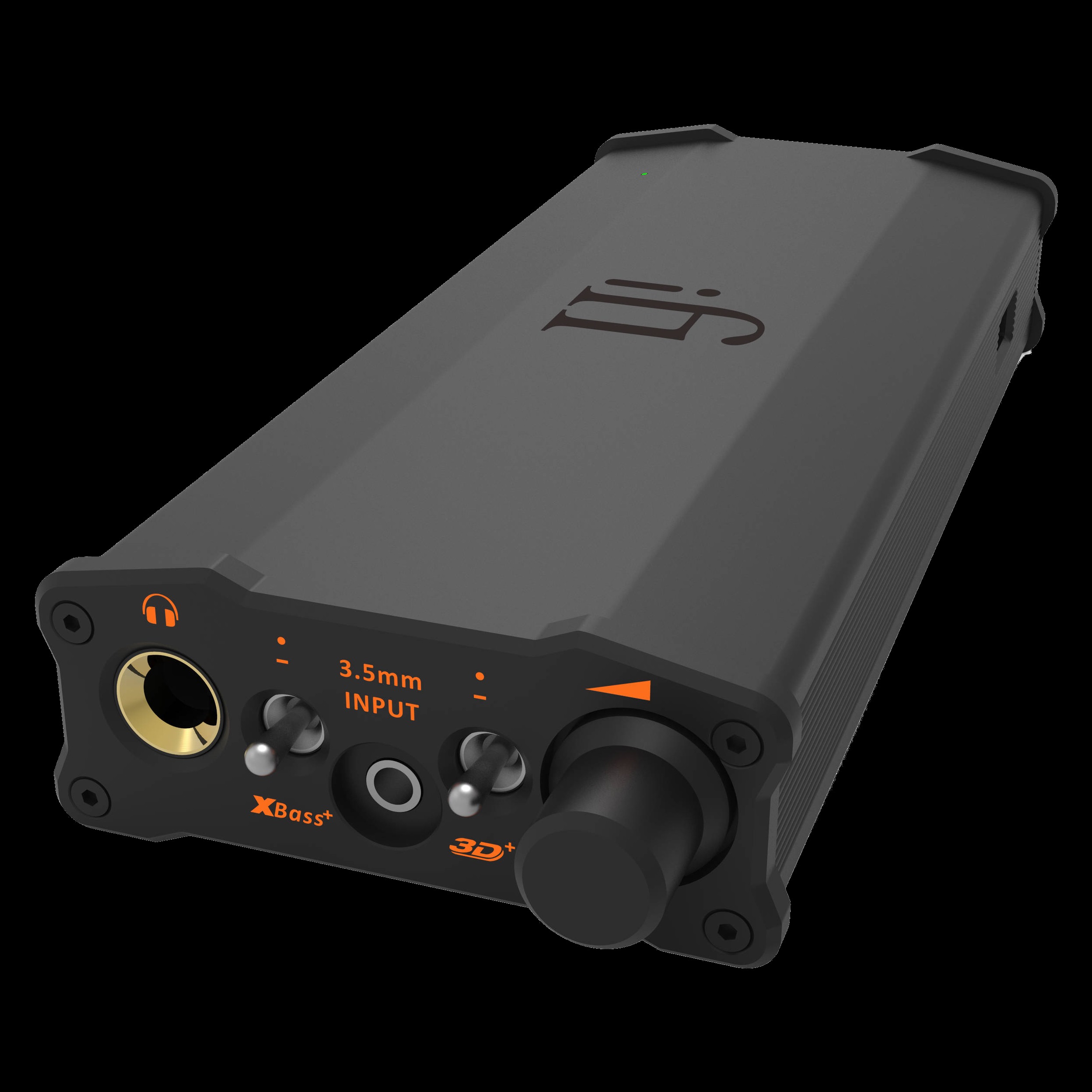

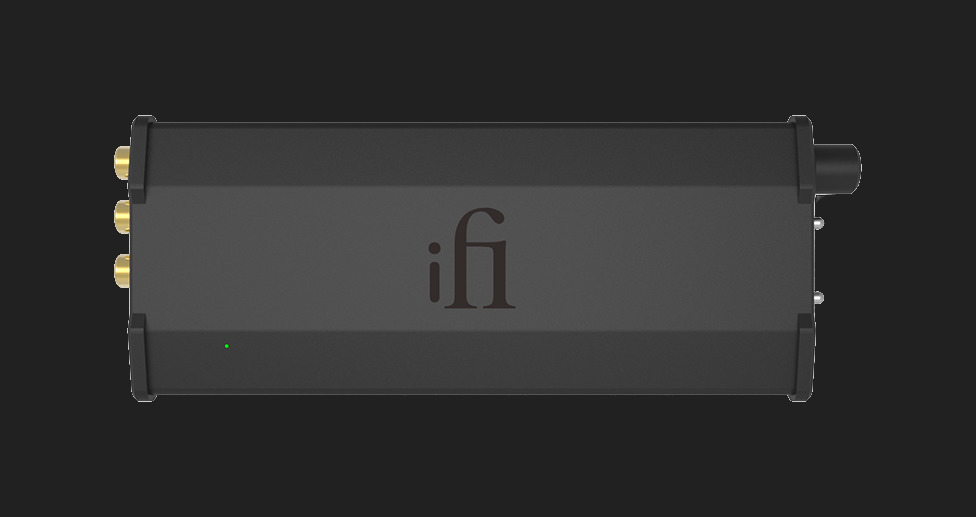

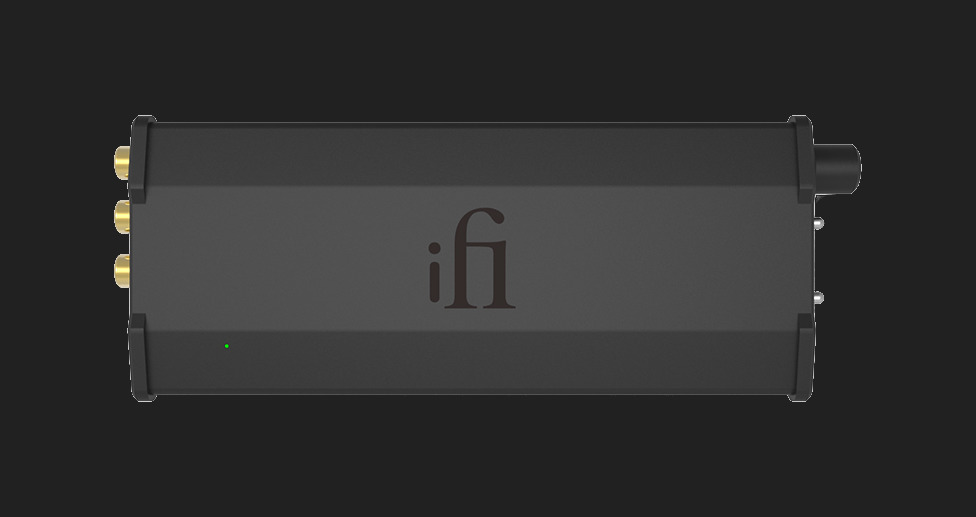

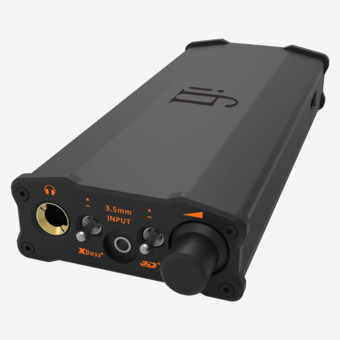

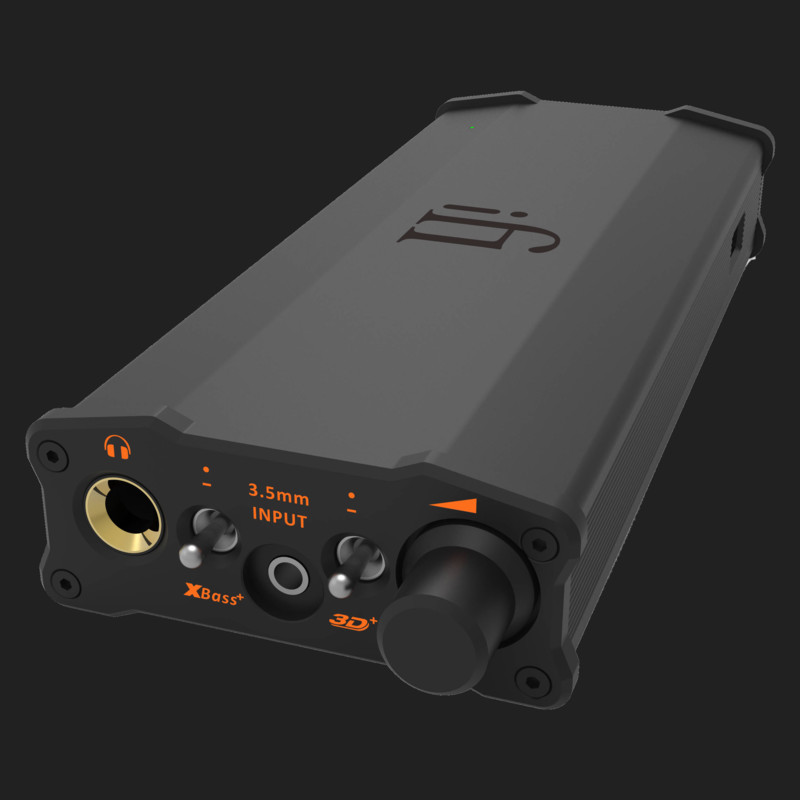

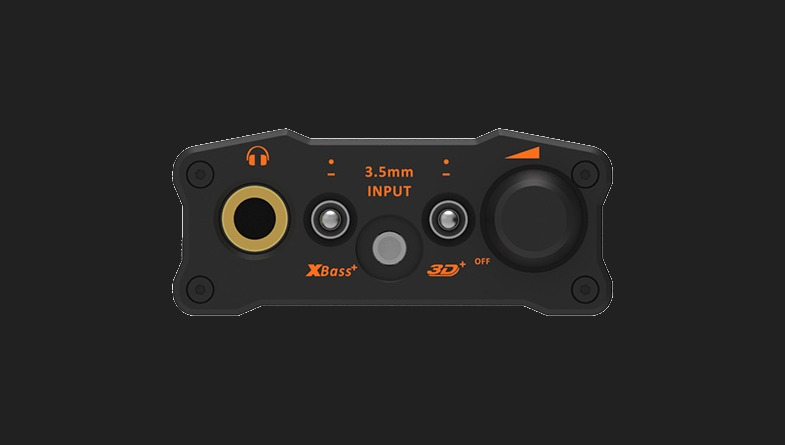

DAC iFi Audio Micro iDSD Black Label

Cod produs: ref.35374
Pret: 2.699 RON
  • 24 luni
    Garantie 2 ani
12 rate fara dobanda prin CARD AVANTAJ

Prezentare generala DAC iFi Audio Micro iDSD Black Label

True Native® Playback

Latest iteration of
3D+ and XBass+

Custom Op-Amps

Exceptional parts quality

dualcore

microidsdbl_3dxbass

microidsdbl_opam

ecpumelf



Heart of Dual-Core
Burr-Brown remains at the core

Both Analogue Signal Processing
circuits new and improved

Only AMR/iFi goes
to these lengths

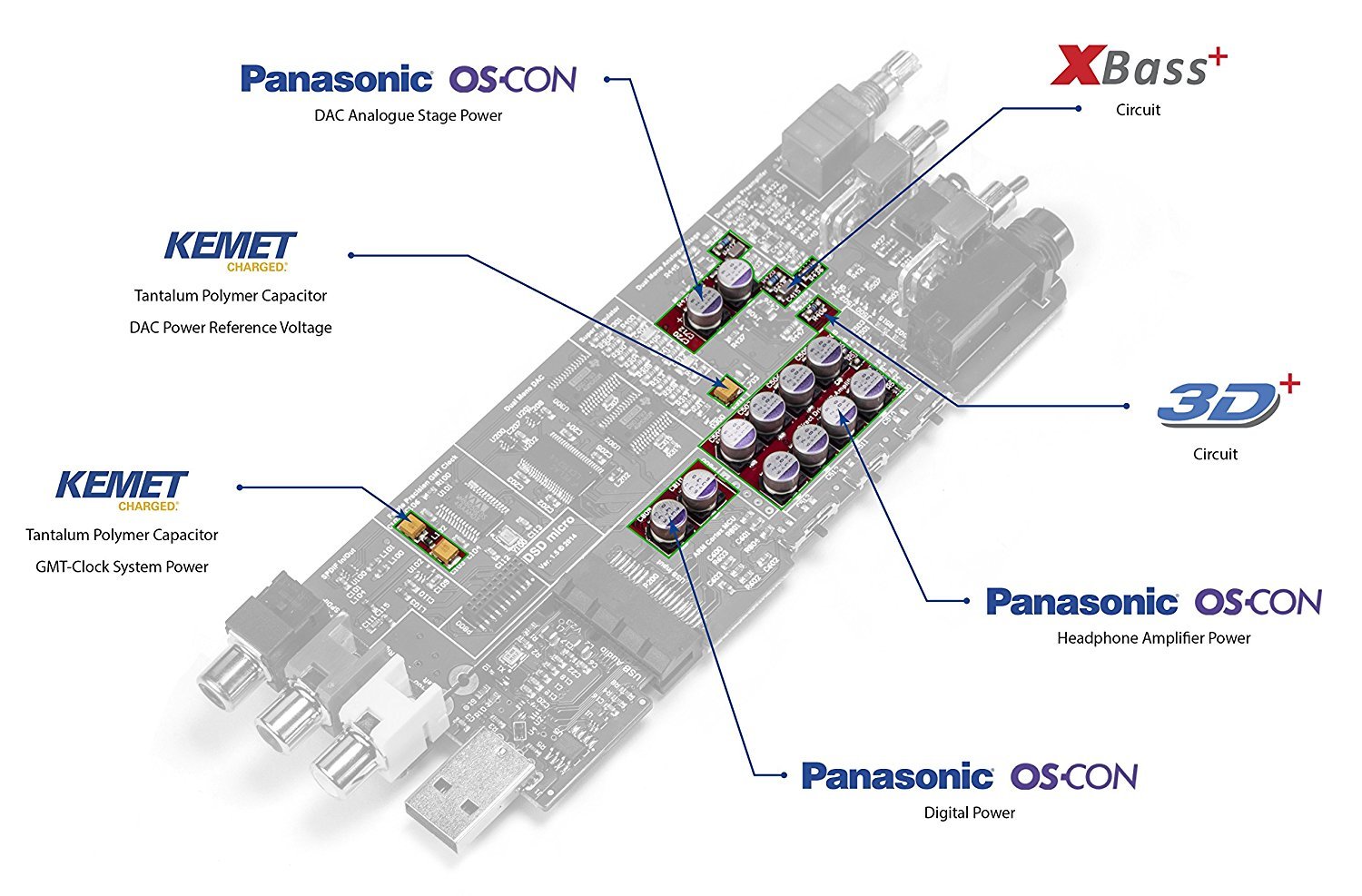

MELF, C0G and Sanyo
OS-CONs wherever possible

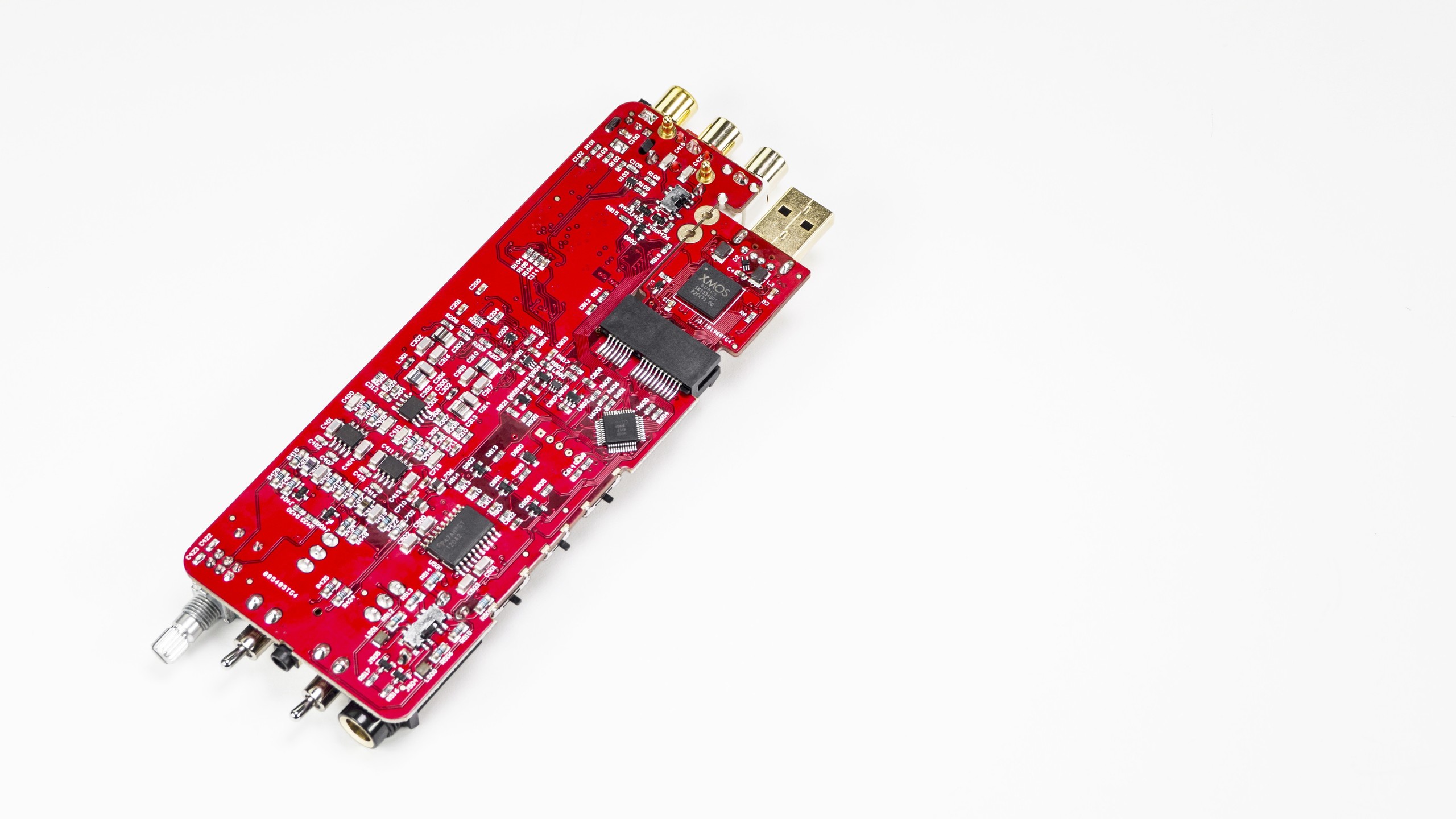

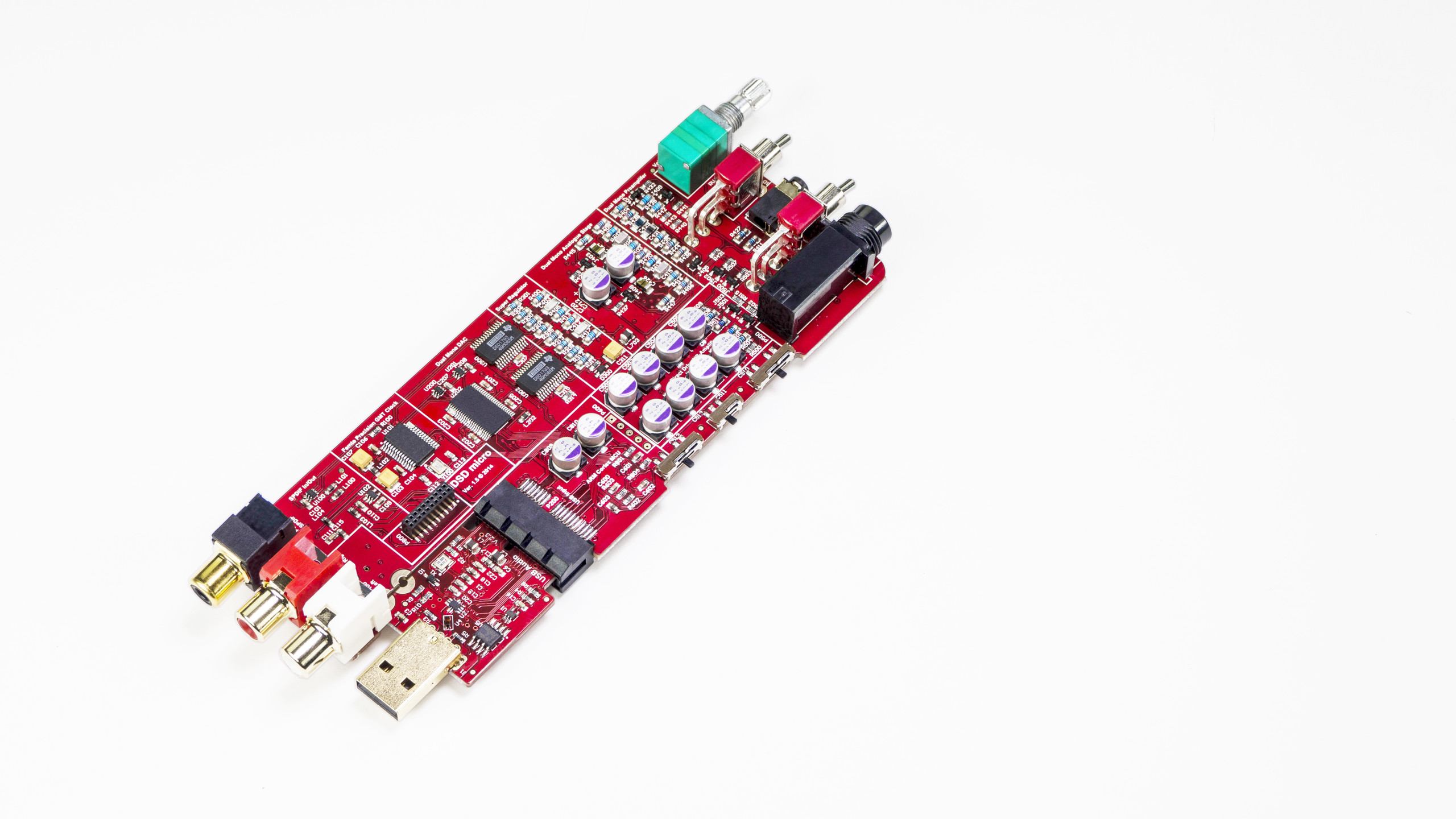

The iFi micro iDSD Black Label is the newest iFi micro flagship product.



At the heart, beats the Burr-Brown DSD512/PCM768/2xDXD True Native® DAC with headphone amplifier.

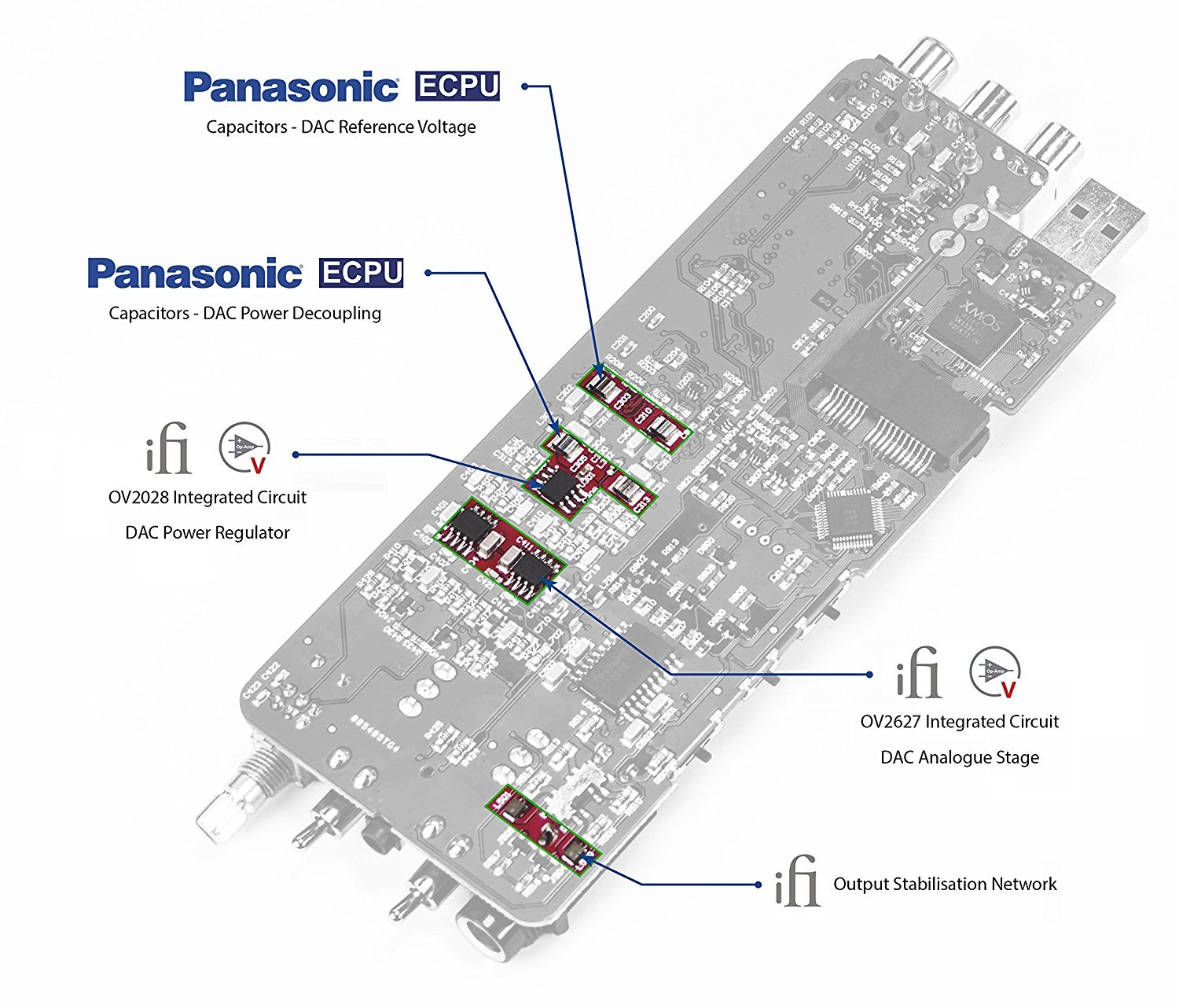

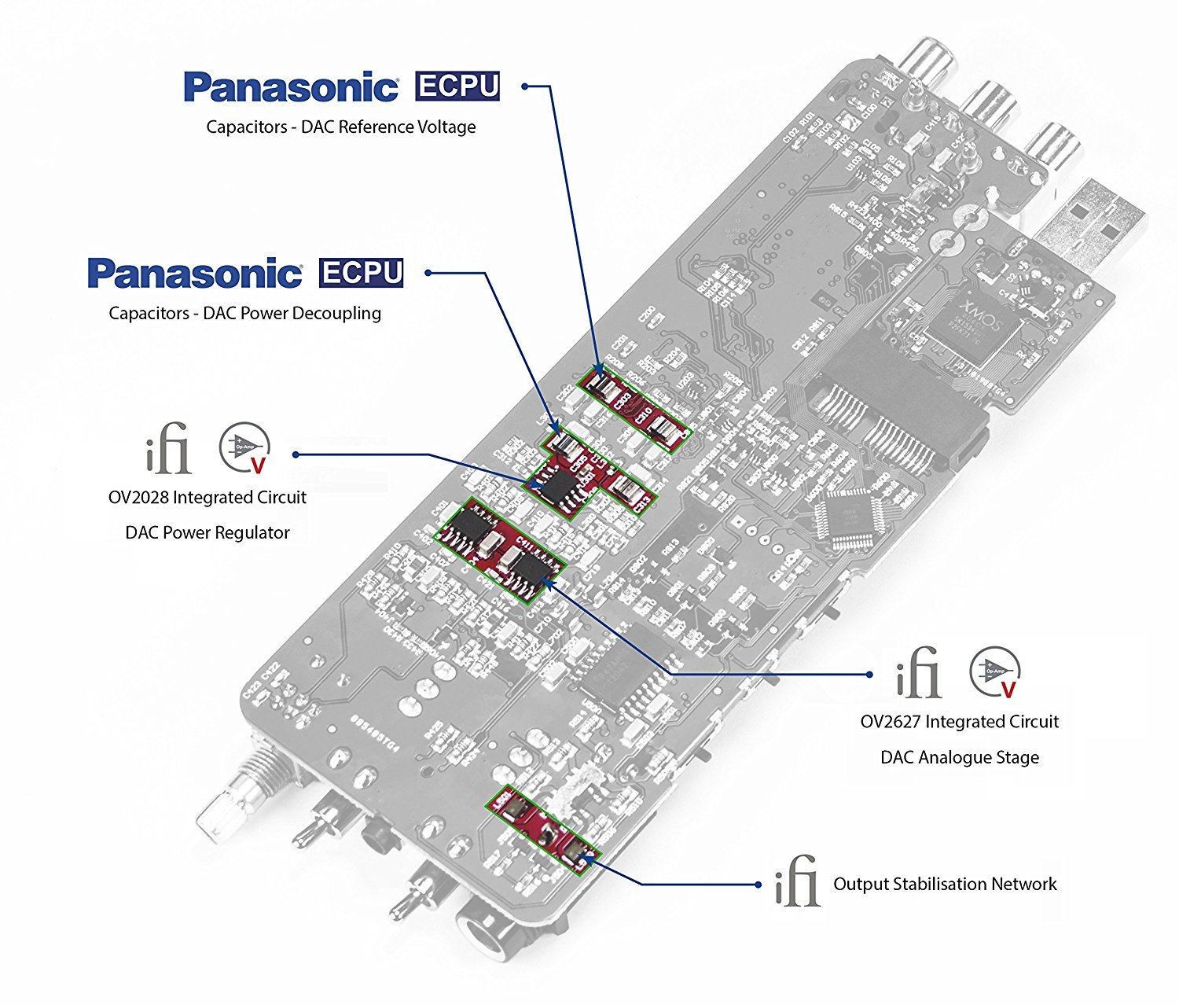

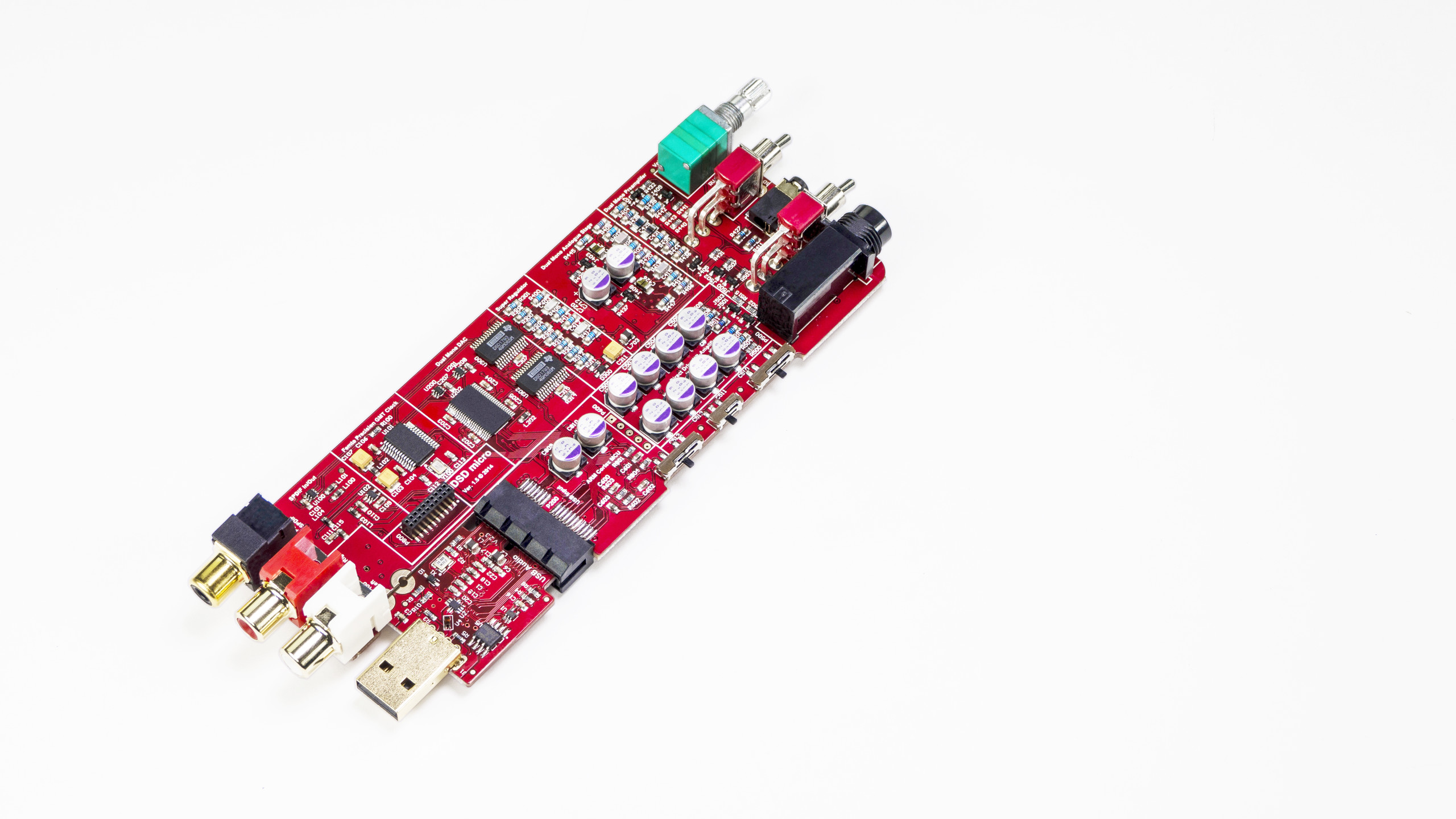

The Black Label looks very good on the outside yet the inside is even better where relentless attention has been paid to advancing the sonics with the very latest components:

 • DAC digital signal and digital power sections upgraded
• AMR Global Master Timing® femto-precision clock system upgraded for ‘super low’ phase-noise/jitter
• Analogue signal and power sections revised
• 3D+® performance-tuned / XBass+® performance-tuned
• Latest Output stabilisation network offers less distortion

The micro iDSD Black Label. The best, evolved.



 The High-Res heart remains – DSD512/PCM768/DXD2x

The micro iDSD BL retains the unrivalled technical capabilities of its predecessor. This means it is capable of true native playback of all music formats from MP3 all the way up to 512DSD/768PCM/2xDXD.

 Burr-Brown Chipset x 2

bbThe Burr-Brown DAC chip used was one of the last chipsets from BB Japan (though it was introduced post-merger). This chipset was Burr-Brown’s ‘swansong’ and embodied all their converter technology. It is unrivalled in terms of subjective musicality and is a mainstay of the iFi line including the micro iDSD Black Label and is used in the upcoming showstopper, the Pro iDSD.

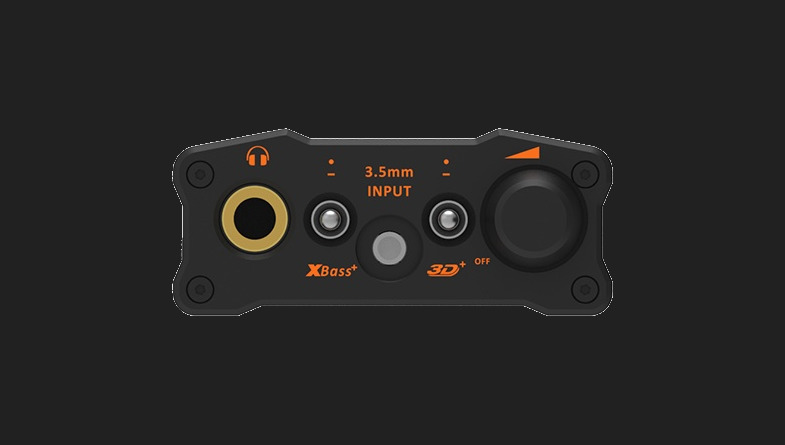

 3D+® and XBass+®

microidsdbl_3dxbassThe latest iterations of 3D+ and XBass+ are appreciated technologies that further enhance the enjoyment of music. With a larger soundstage and deeper, tighter bass respectively, both are even more engaging and satisfying than ever.

 Operationsverstärker

microidsdbl_opamiFi/AMR ‘OV’ series stands for ‘Operationsverstärker’ (German for Operational Amplifier). The ‘OV’ range IC’s use HCOFC copper lead-frames and 4N Gold bond-wire which are streets ahead of mainstream commercial chips that use inexpensive aluminum bond-wire, low-grade/low-cost copper in the lead-frames.



tqfp_leadframe_p2
 It is seldom found because it requires the custom packaging of chips from wafers and has a very high MOQ (30,000 pcs per part and purchase) to do – a small insight into the parts used in the micro iDSD BL which are ‘above and beyond.’

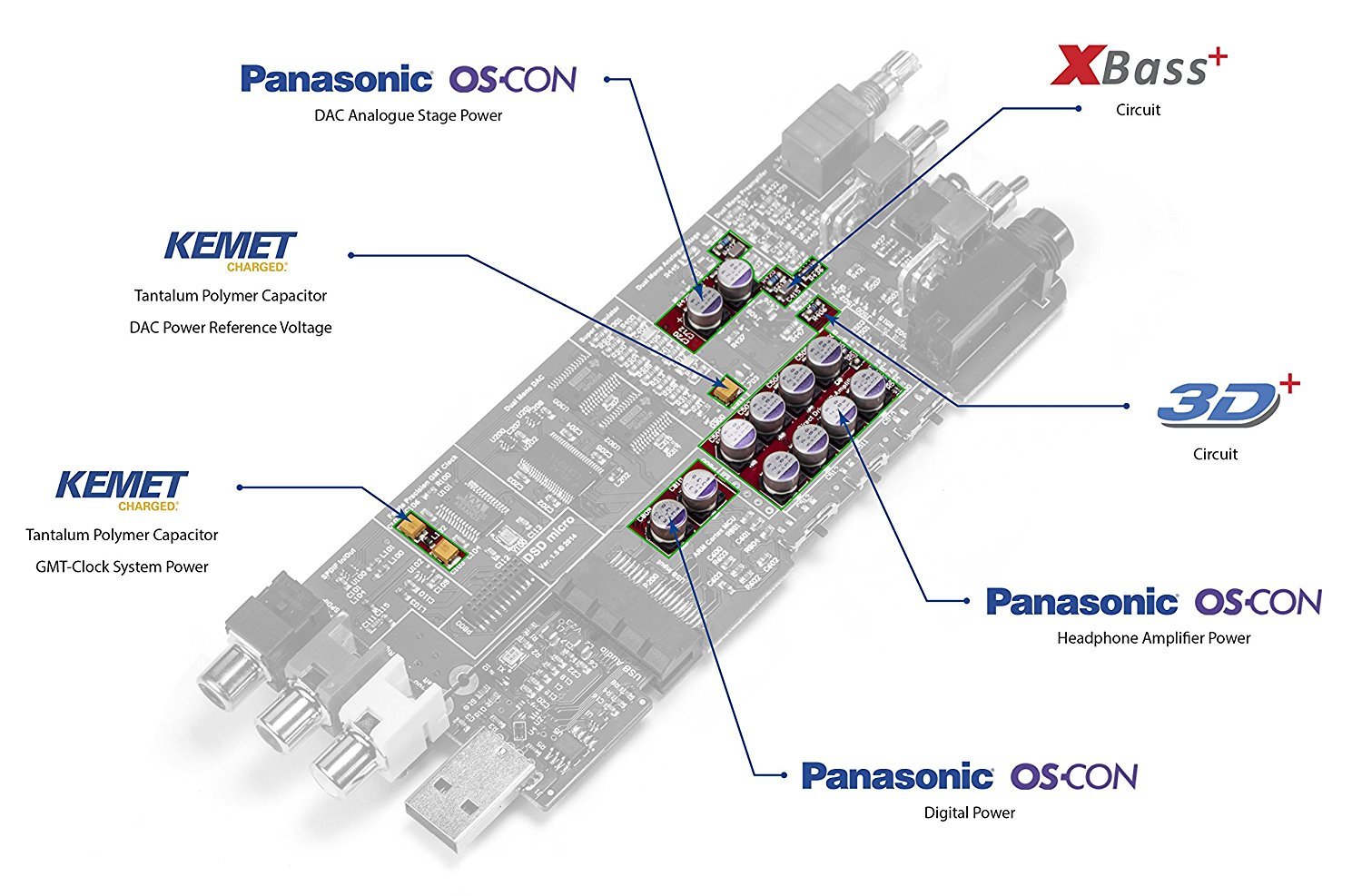

 Sanyo OSCONs are go

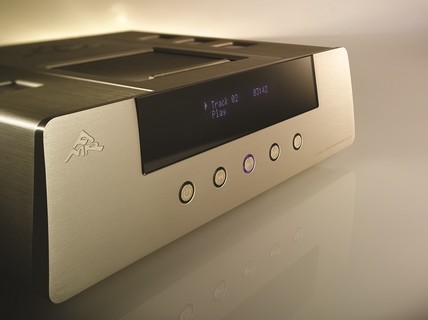

sanyo-osconOs-Cons, originally from Sanyo (now taken over by Panasonic), have been around for a good while. Among the larger value capacitors useful in power supplies, they hold a special place. They have been used in AMR components up to the revered CD-77 Reference Class CD Processor.



amr-cd77-aufmacher00006
 So, despite their steep cost (around 10x that of common electrolytic capacitors), the micro iDSD Black Label is one of the first

 Turbo-charge headphones

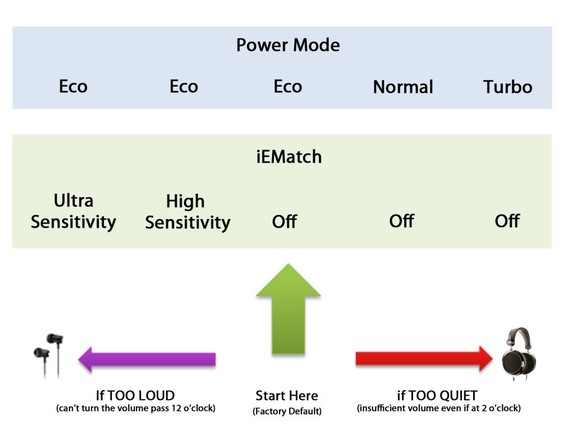

iDSD_micro_TurboThere are three power output modes, Eco, Normal and Turbo. If used in conjunction with the built-in iEMatch, the micro iDSD BL is able to have the power and gain dialed-in to perfectly suit all headphones from the super-sensitive Sennheiser IE-800 up to the hyper-hungry HiFiMan HE-6.
 powermode-1024x796

 Intelligent In/Out SPDIF Digital Optical/Coax

spdifDigital Audio Players (DAP) and home SPDIF sources are abound. Flexibility remains key and the micro iDSD BL retains the intelligent SPDIF in/out socket for optical/coax signals. So for those who wish to upgrade their DAP, simple use it as a transport and feed the micro iDSD Black Label.

 Battery for music on-the-go

batteryFrom the very hungry HiFi Man HE-6 down to the Sennheiser IE-800, the micro iDSD Black Label is able to play hi-res out and about for 6 to 12 hours respectively. Even when not in use, it is able to charge an iPhone from 0% to 100% two times through its side USB charging port.

Specificatii tehnice pentru DAC iFi Audio Micro iDSD Black Label

Link producator: http://ifi-audio.com/portfolio-view/micro-idsd-bl/
Alte caracteristici: putere amplicator casti ( turbo mode ):
4,000 mW @ 16 Ohm
> 1,560 mW @ 64 Ohm
> 166 mW @ 600 Ohm

Decodeaza PCM pana la 768 kHz / DXD pana la 768 kHz / DSD pana la 24.6 MHz

RMS jitter 12kHz – 1MHz < 280 Femtoseconds

Dynamic Range (Line) >117db(A)
THD: < 0.003%

REVIEW-URI PENTRU DAC iFi Audio Micro iDSD Black Label

Nota  (5)
bazata pe 2 aprecieri
Gheorghe Dobrescu la 09-05-2017 (06:14)

Un sunet incredibil, iFi iDSD BL va functiona perfect cu casti de la Sennheiser ie800 pana la HD800S! Un sunet cald, extrem de clar, impreuna cu ie800 suna ca si muzica live! Review in detaliu pe Audiophile Heaven https://audiophile-heaven.blogspot.ro/2017/05/ifi-idsd-bl-pinnacle-of-dac-and-amp.html

Daniel Bornaz la 28-07-2017 (10:59)

Impreuna cu Oppo PM-3, este senzational. Sunetul este vibrant, notele sint distincte pe toata gama de frecvente pe care eu, personal, o pot percepe. Sunetele sint redate spatial, senzatia de spatiu muzical fiind evidentiata destul de bine. Instalarea a fost destul de simplu de facut, in Windows cu driverele respective, iar in Linux pur si simplu selectind sursa specifica. Si inca ceva: diferenta majora intre iDSD BL si Chord Electronics Mojo, diferenta peste care nu am putut trece, este faptul ca iDSD-ul are null-ul analogic separat galvanic de null-ul digital.
