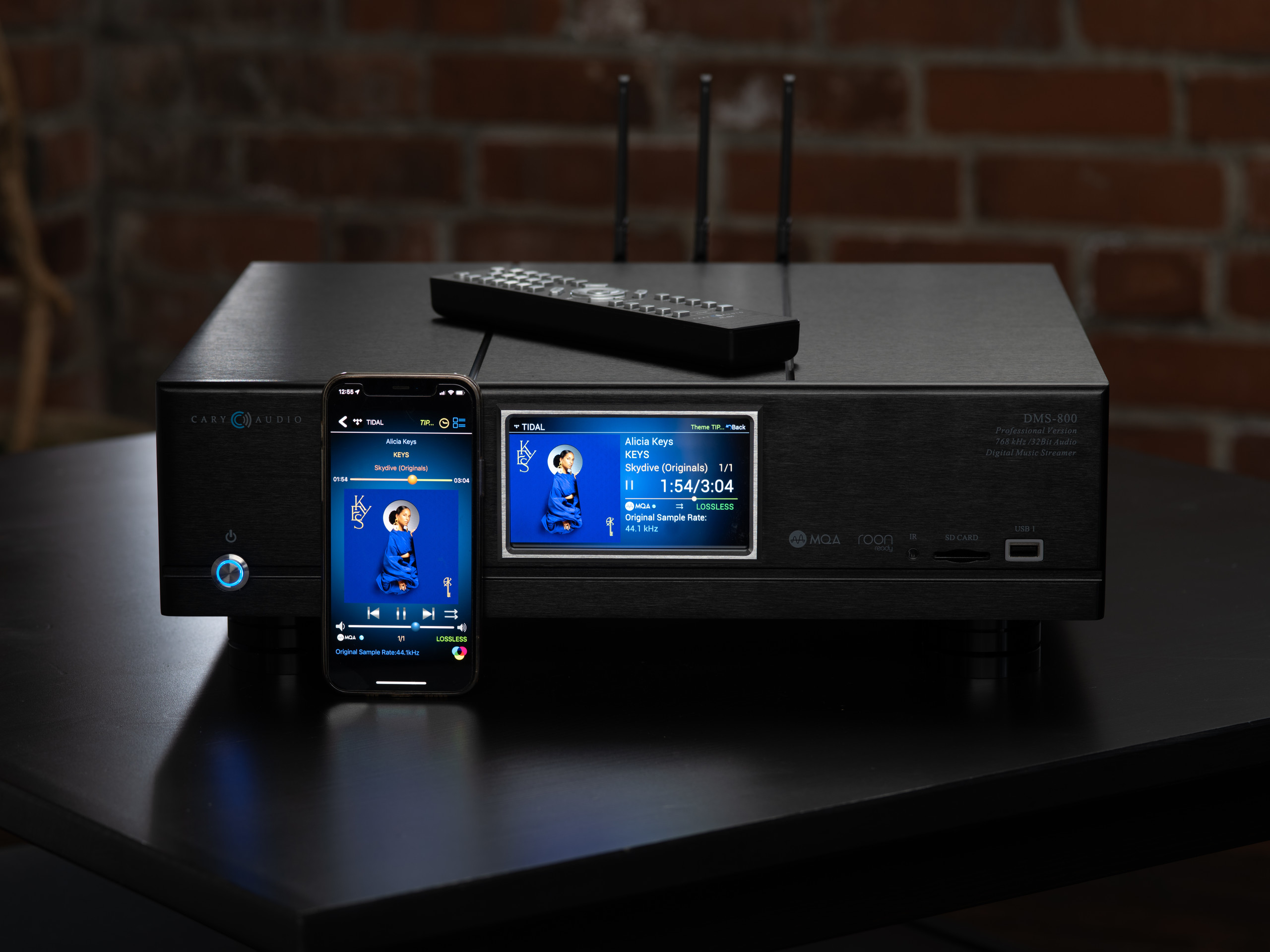

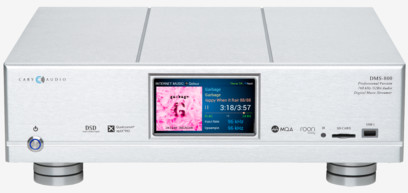

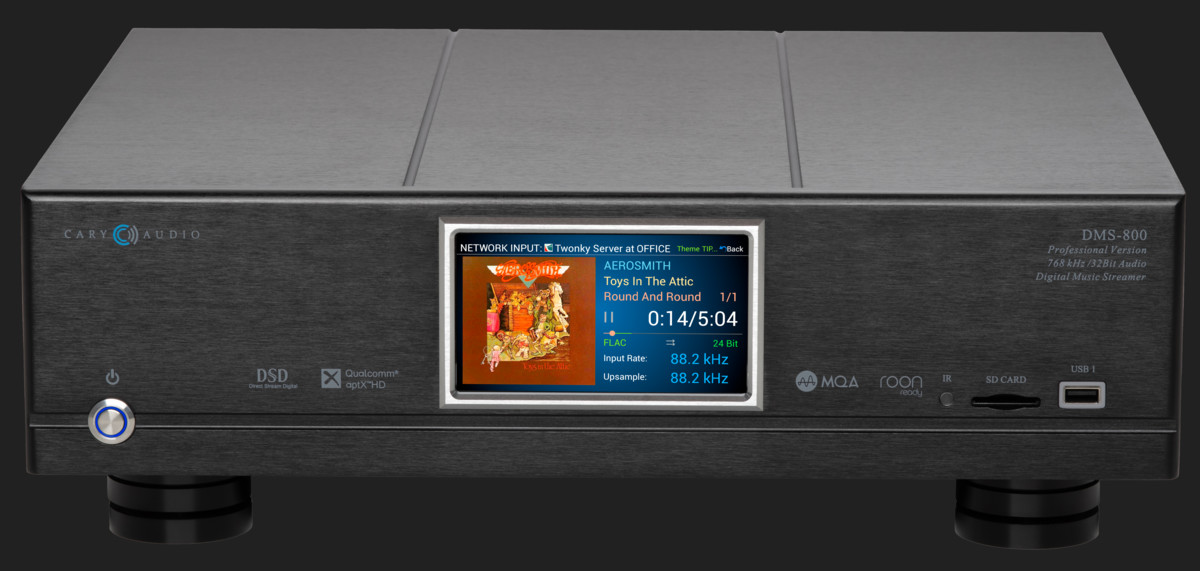

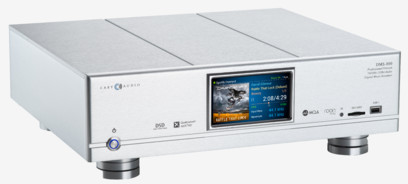

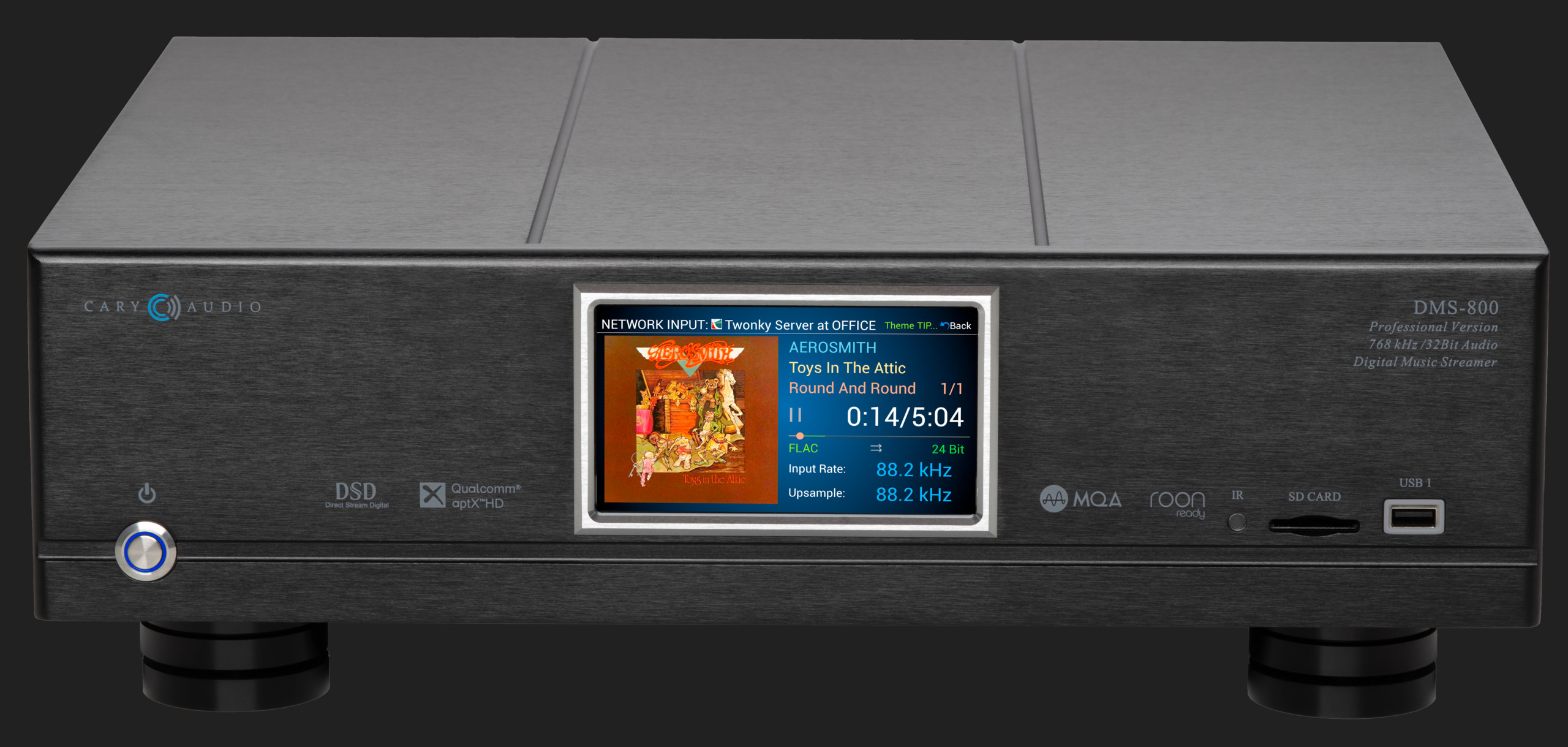

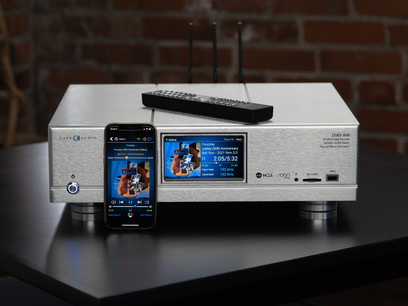

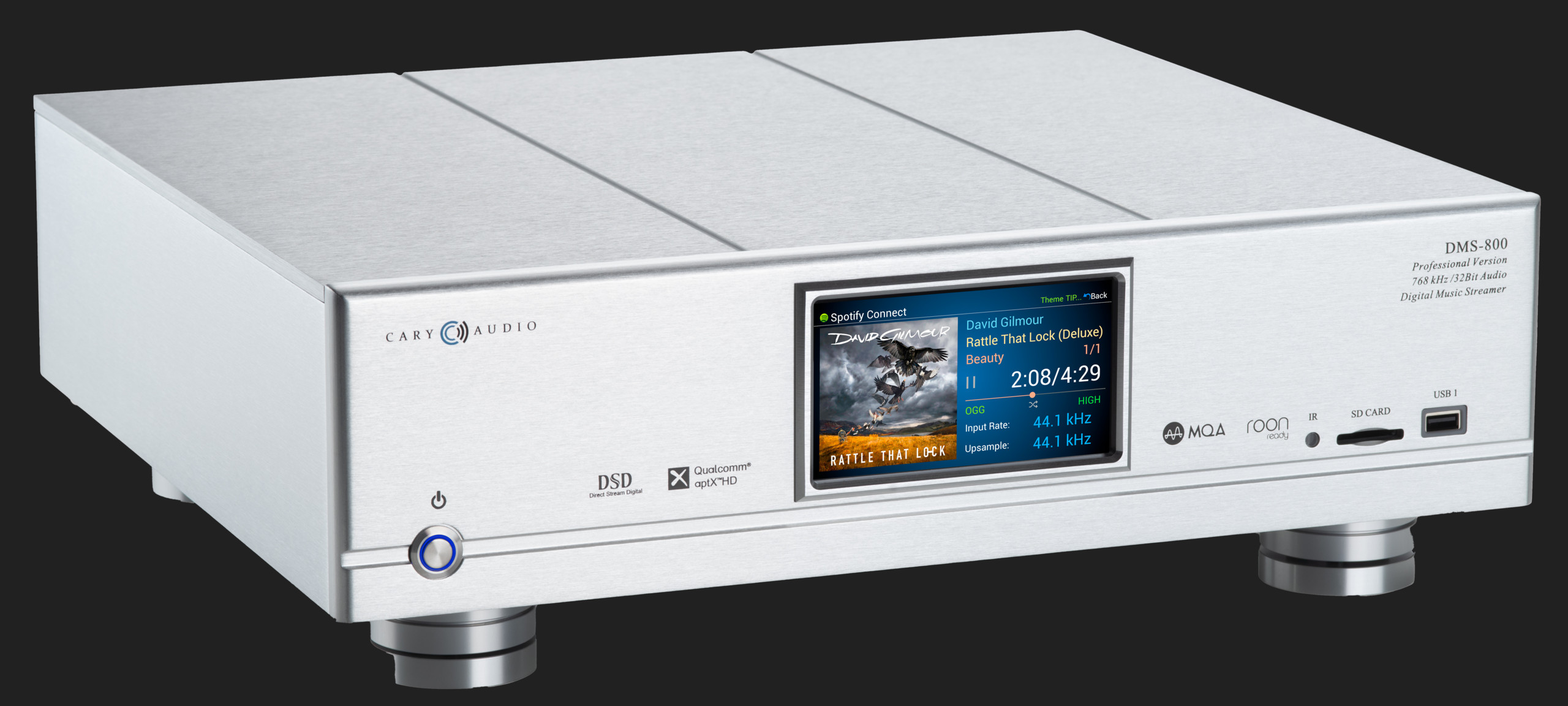

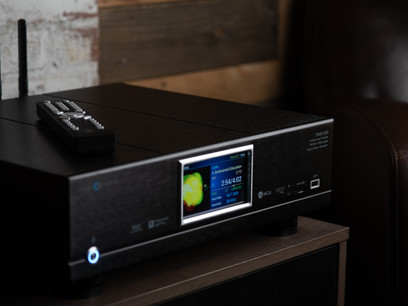

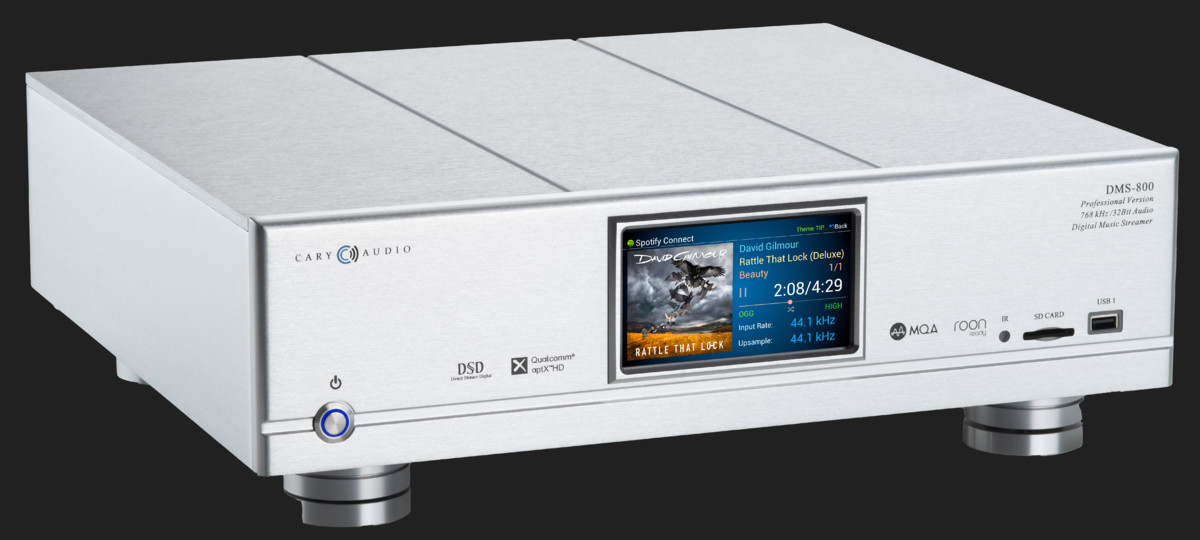

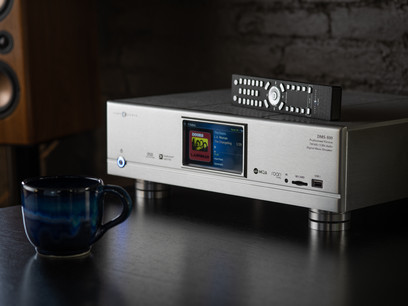

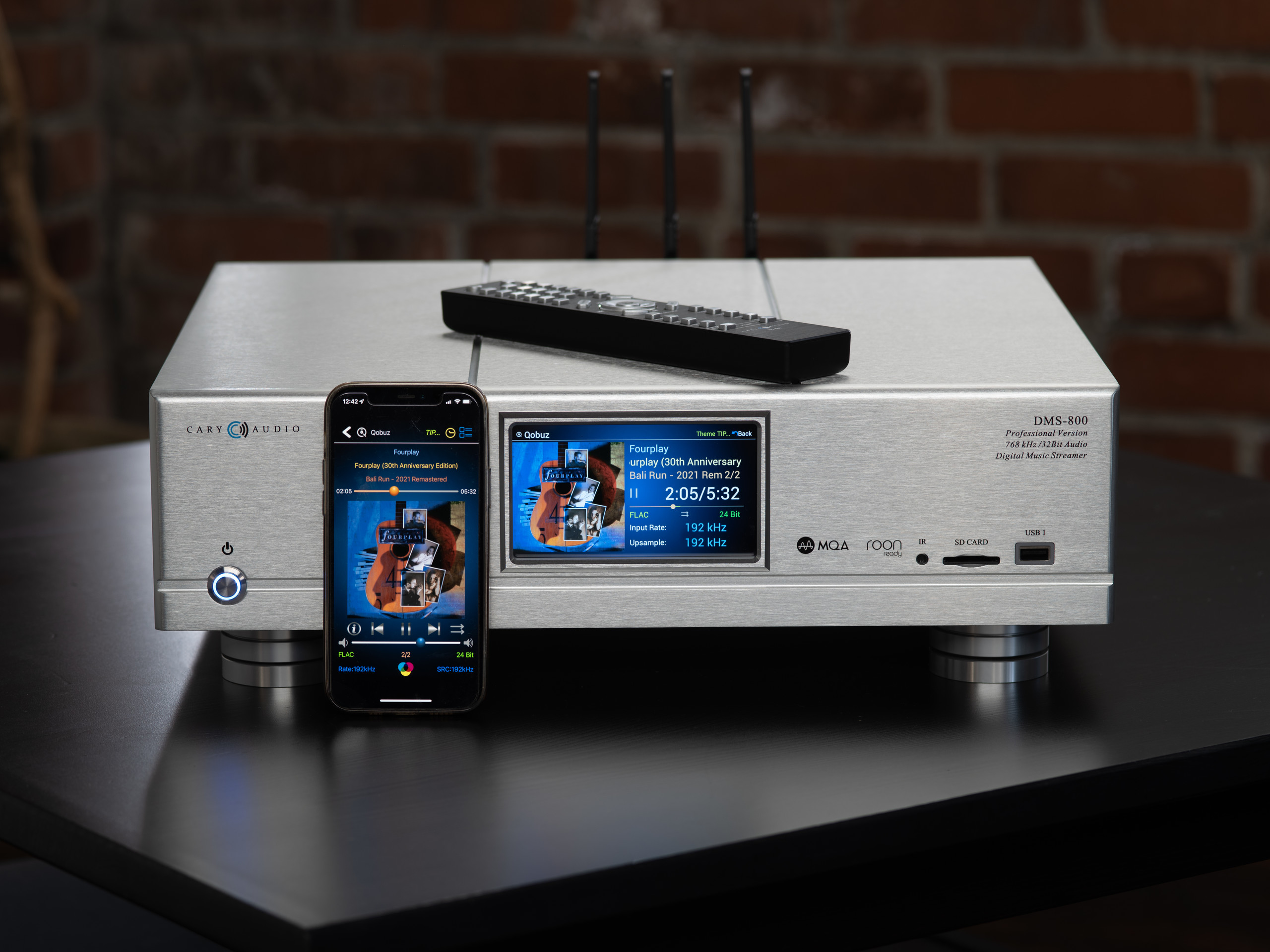

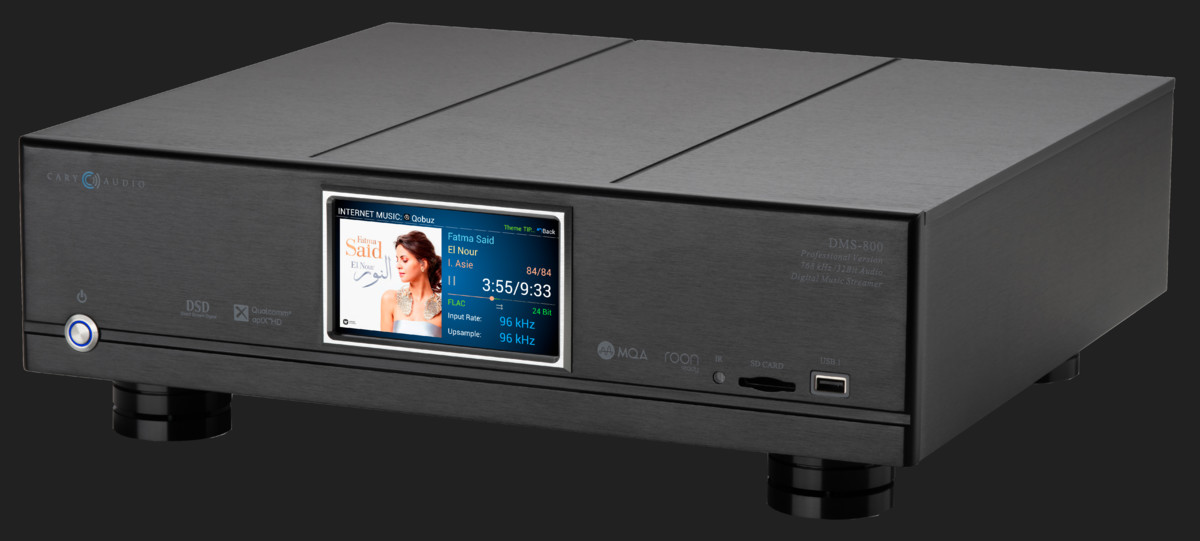

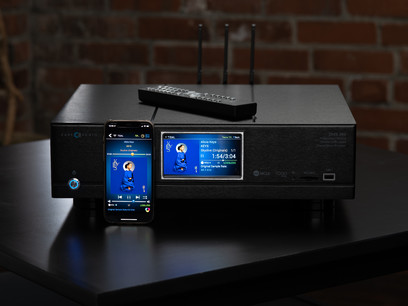

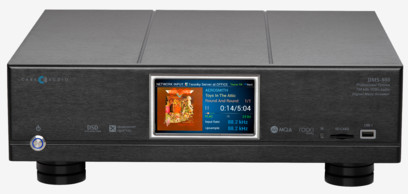

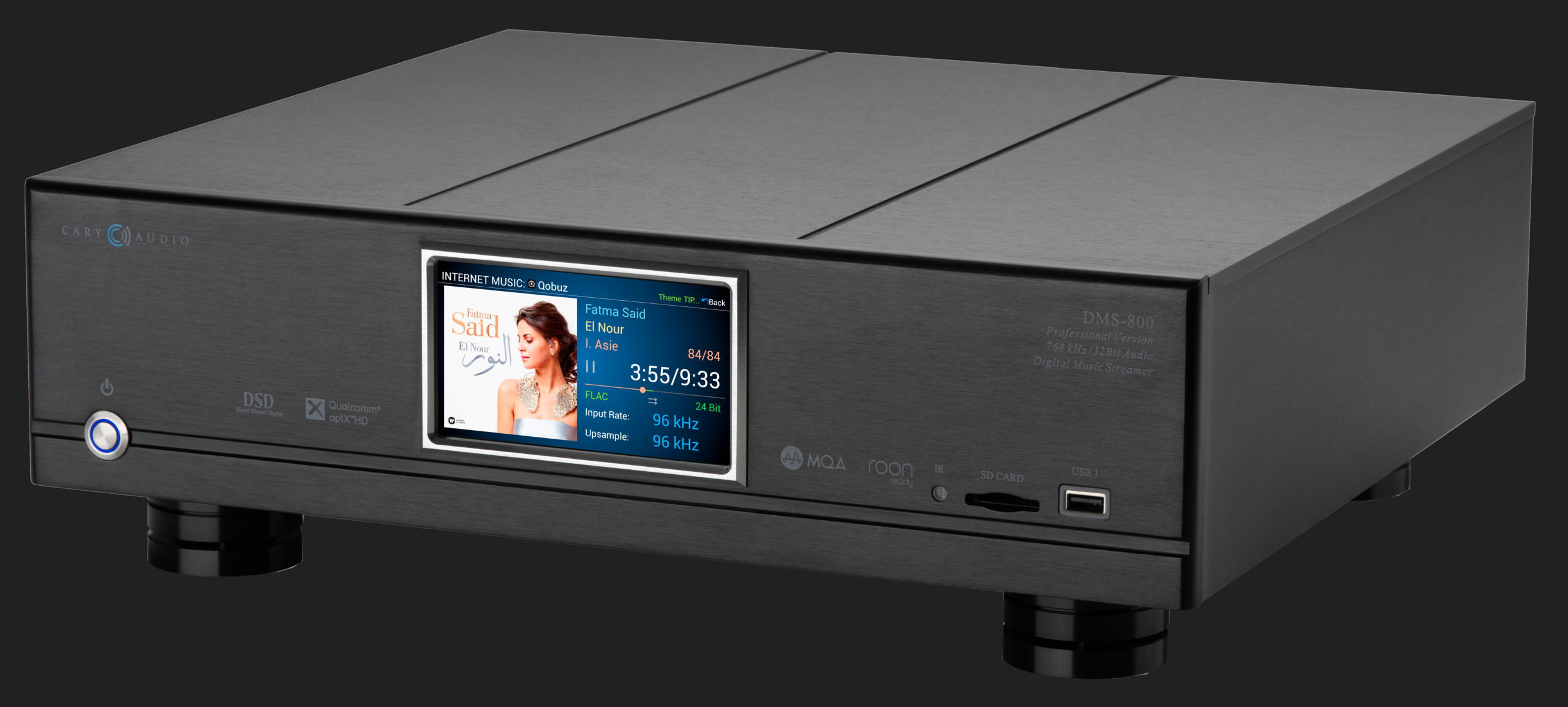

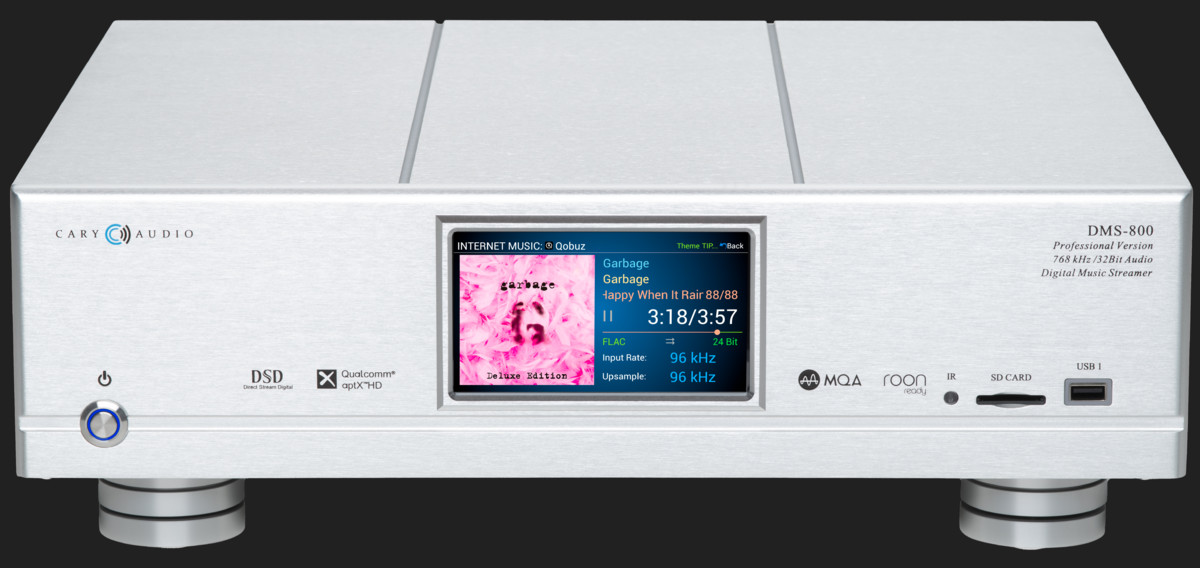

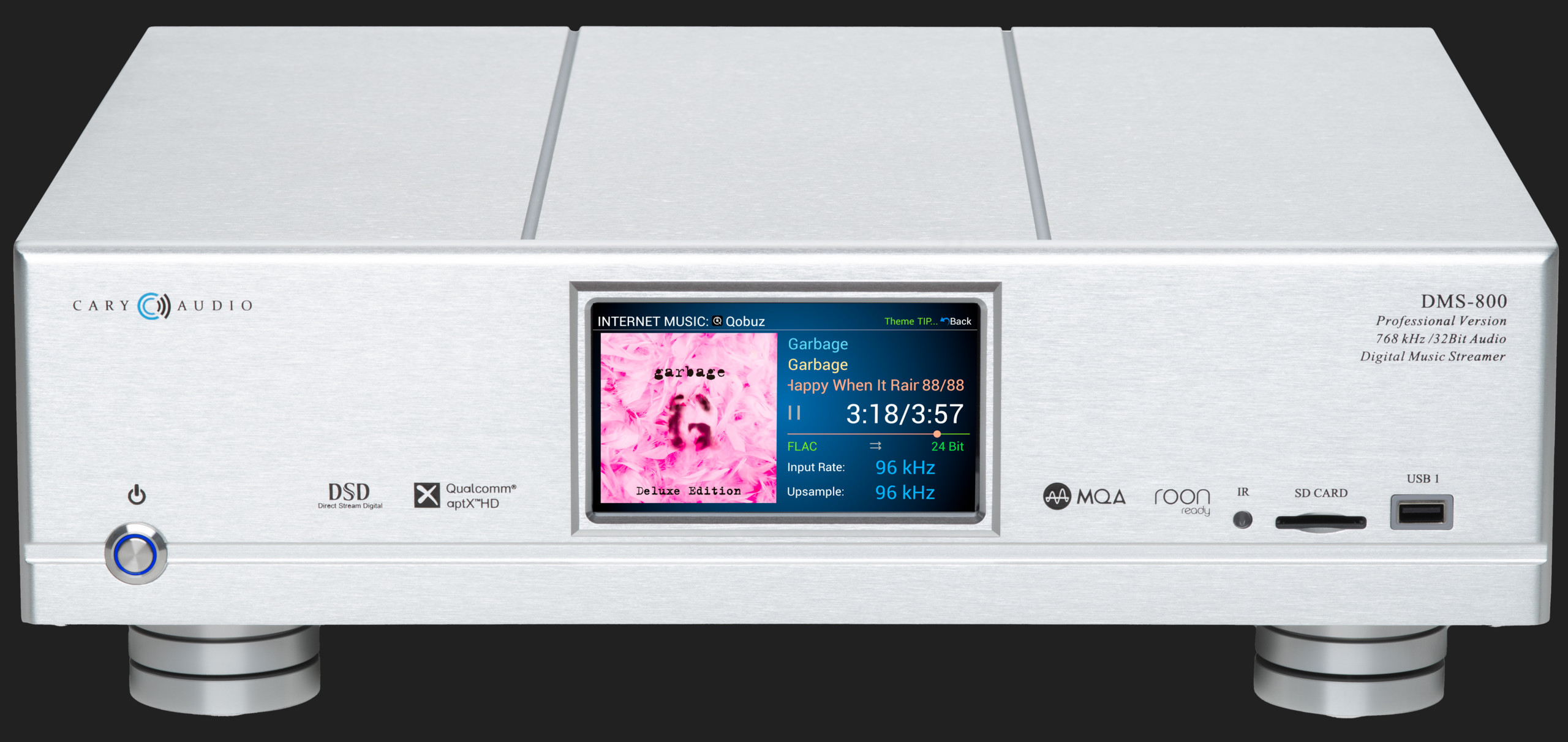

Cary DMS-800 Professional Version

Cand a fost produs DMS-700, echipa Cary Audio s-a gandit la o versiune fara limite a modelului DMS, capabil sa concureze cu cele mai bune streamere din clasa. In primul rand, ar trebui sa depaseasca performantele lui DMS-700, lucru care nu este deloc usor. Dupa cercetari considerabile, s-a nascut DMS-800PV.

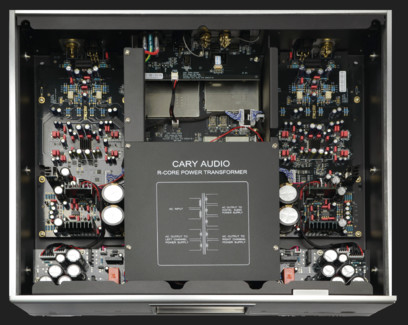

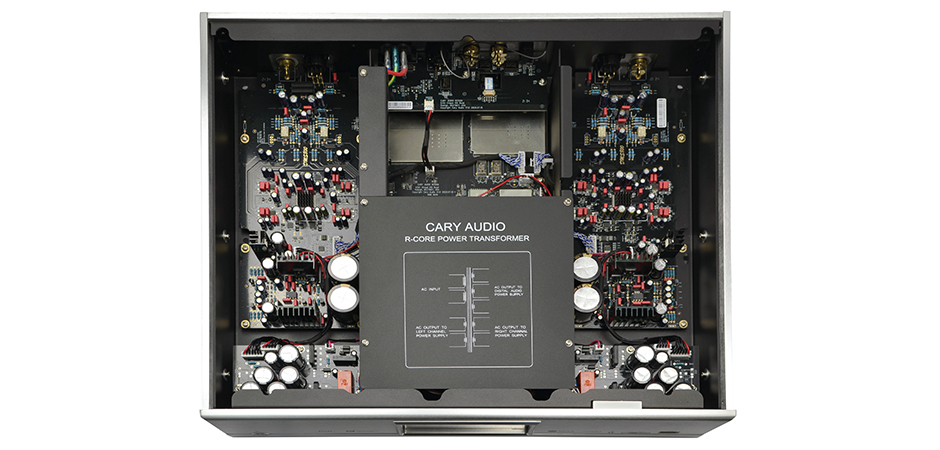

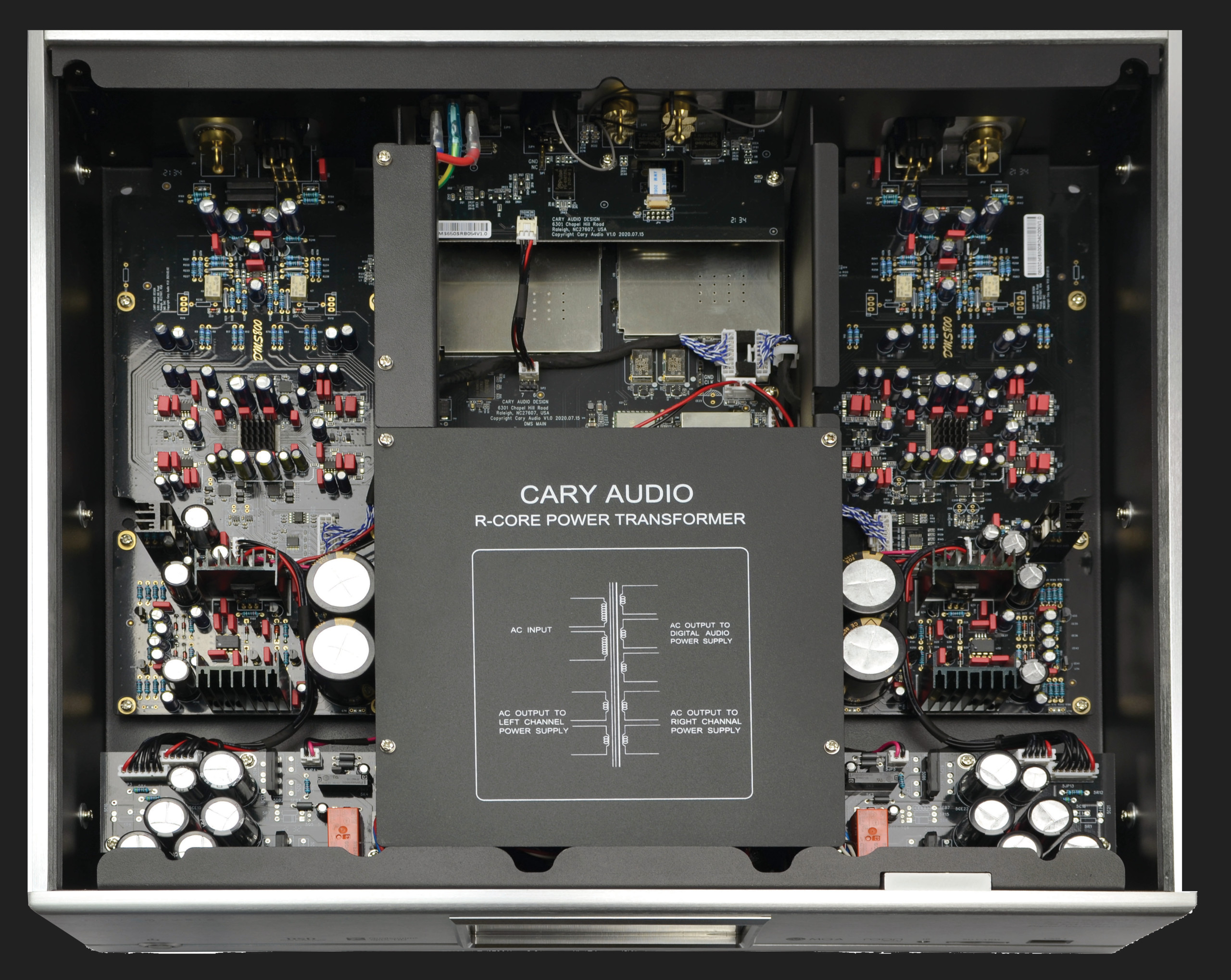

DMS-800PV este o minune in editie limitata. Daca DMS-700 avea o caracteristica analogica, DMS-800PV ESTE analogic. Cu un sunet mai mare, mai profund, mai larg si mai fluid DMS-800PV este capabil sa dezvaluie instrumentele actuale din inregistrari si sa nu sune doar ca niste simple instrumente. Acest lucru permite o patrundere mai dimensinala in muzica, dezvaluind un sunet plin de viata. Pe interior, DMS-800PV are und esign dual-mono, dubland aproape totul din renumitul DMS-700. In timp ce DMS-700 utilizeaza un singur etaj digital/analogic cu un singur DAC AK4499EQ (echivalent a 4 DAC-uri), DMS-800PV utilizeaza etaje separate pentru canalul stang si drept. Fiecare etaj are propriul DAC AK4499 pe patru canale, pentru un total de 8 canale individuale pentru un circuit diferential dublu complet balansat. In plus, DMS-800PV include un Crystek Oscillator Clock, doua etaje separate DSP, 14 grupuri de surse de alimentare independente si doua grupuri surse de alimentare pentru etajul analogic, precum si alte imbunatatiri. DMS-800PV dispune de un ecran mai mare de 5" de inalta rezolutie si o silueta usor mai inalta fata de modelele DMS precedente. In interiorul lui DMS-800PV sta un design de circuit minunat in ceea ce priveste reglarea puterii, alaturi de ciruitele digitale si analogice.

DMS-800PV este de asemenea Roon Ready si dispune de certificare MQA. Preum alte produse DMS, DMS-800PV premite streaming din TIDAL, Qobuz, Spotify, Spotify Connect, vTuner sau din alte fisiere stocate pe un computer sau NAS. Si daca nu este suficient, include trei port-uri USB-A pentru ascultarea de pe HDD-uri, stick-uri sau chiar un SD card. DMS-800PV include de asemenea o intrare si iesire aptX™ HD (iesirea este pentru boxe sau casti Bluetooth), precum si AirPlay.

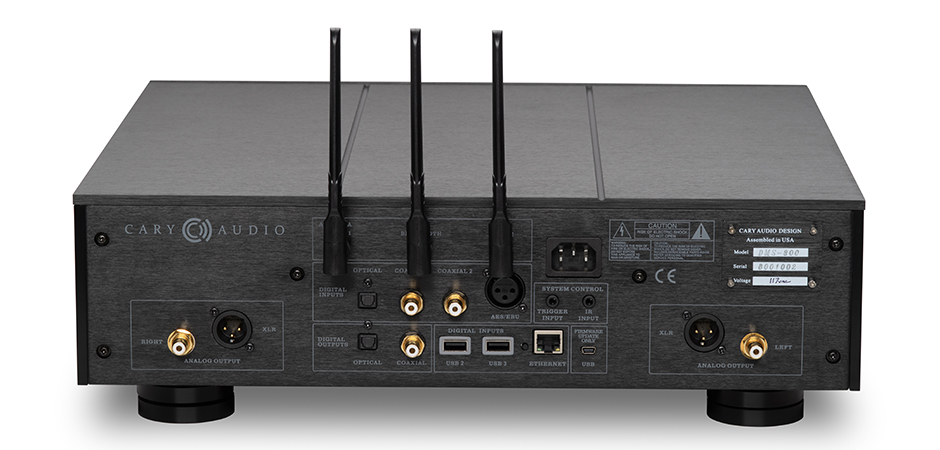

Functiile aditionale includ conectivitate Ethernet sau Wi-Fi, upsampling PCM selectabil TruBit™ pana la 768kHz, si conversie PCM la DSD selectabila cu upsampling selectabil DSD. Intrarile digitale includ 2 x Coaxial, 1 x Optical si 1 x AES/EBU, precum si iesirei coaxiale si optice, iesiri RCA si XLR balansat, OSO™ Re-clocking, MU-MIMO Wi-Fi, si o iesire 3-volt si control de volum variabil pentru conectarea directa la un amplificator.

Master Clock Jitter: Below measurable levels

Digital Sampling Rates (Fs): 44.1 kHz to 768 kHz, DSD64 to DSD512

Digital Filter: 32-Bit 8x Oversampling Digital Filter

Digital/Analog Converters: 2 – 4 channel AK4499EQ for working on true balanced output

BLUETOOTH: CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder

Analog Filter: 3rd Order Bessel

Analog Outputs: Balanced XLR, Single – Ended RCA

Digital Outputs: Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 24 bit, DSD64, DSD128, DSD256

Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64

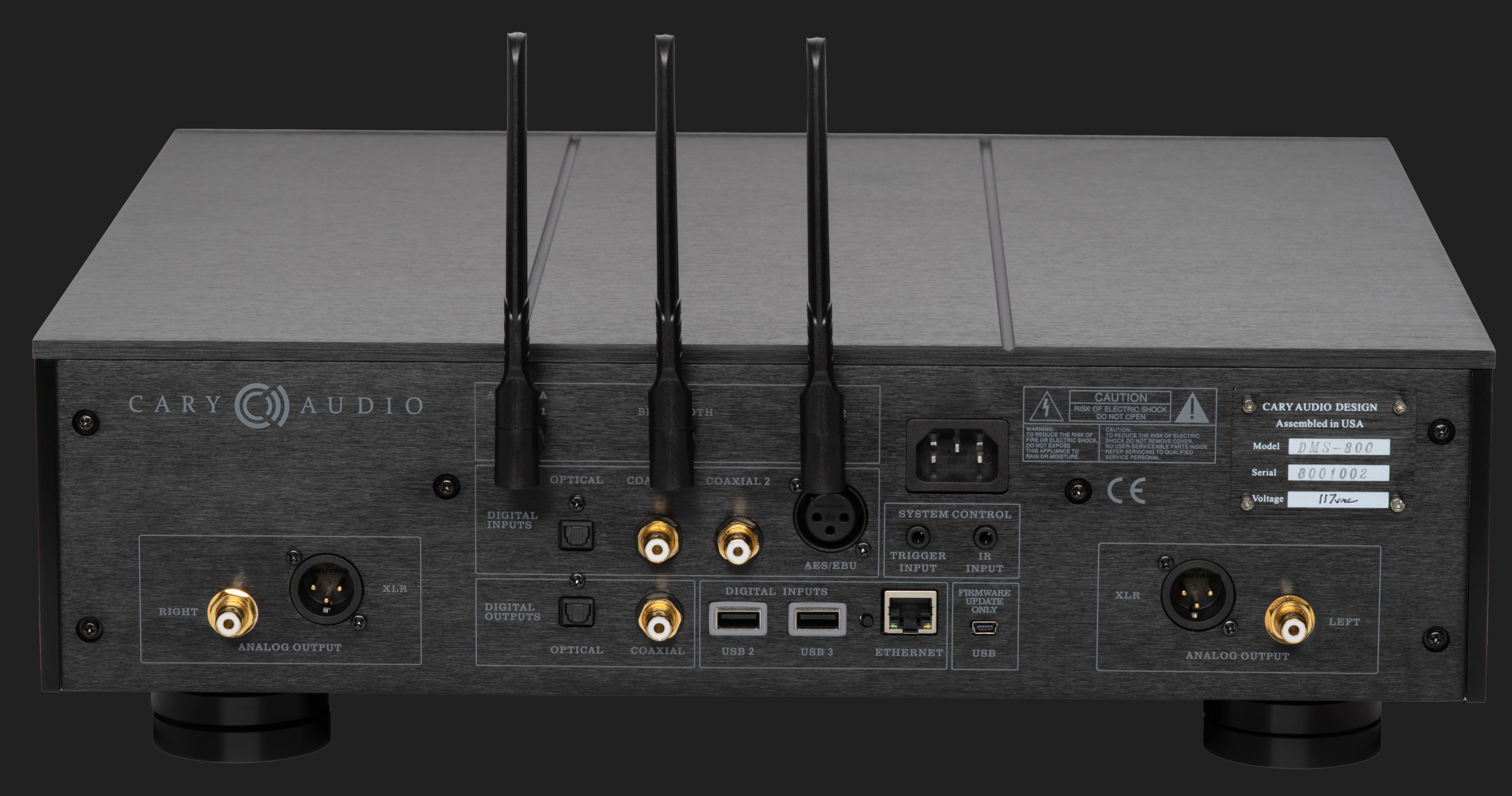

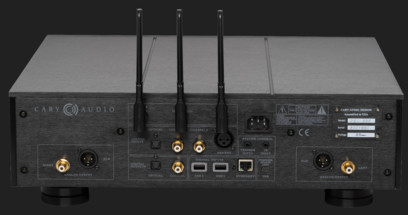

Digital Inputs: USB x 3, SD Card x 1 BLUETOOTH x1 AES/EBU x1, Coaxial x2, Toslink x1

Digital Input Sample Rate: USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512.

BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit.

AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16bit to 24 bit, DSD64 to DSD256

Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64

Control: Trigger input 12VDC x1

IR control x1

Communication: Ethernet RJ45 full remote configuration interface

Wi-Fi 802.11 b/g/n/ac support MU-MIMO

Power Input:Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz

AC Power Requirements: 55 Watts

Weight: 17.9kg

Dimensions: 10.79cm H x 43.81cm W x 41.27cm D

AUDIO (LPCM)

Frequency Range: 2 Hz – 22 kHz (44.1 kHz)

Amplitude Linearity: 0.1 dB (20 Hz – 20 kHz)

Phase Linearity: 3 degrees (20 Hz – 20 kHz)

Dynamic Range: 129 dB (1 kHz) XLR OUT

Signal-to-Noise Ratio: 127 dB (1 kHz)

Channel Separation: 107 dB (1 kHz)

Total Harmonic Distortion: 0.0001% (1 kHz)

Audio Output Level: 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output: +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply: .dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf

Frequency Range: 2 Hz – 100 kHz +/- 3.0 dB

Signal System: 16, 20, 24, & 32 bit PCM and 1 bit DSD

Sampling Frequency: 44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD

Dynamic Range: 129 dB @1kHz XLR OUT

DSD System Clock: Frequency 22.5792 MHz

Signal-to-Noise Ratio: 127 dB

Audio Output Level: 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output: +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range: 2 Hz – 100 kHz +/- 3.0 dB

Signal System: 16, 20, and 24 bit

Sampling Frequency: 44.1 kHz to 768 kHz PCM, DSD64, DSD128, DSD256

Dynamic Range: 129 dB @1kHz XLR OUT

System Clock: Frequency 22.5792 MHz

Signal-to-Noise Ratio: 127 dB

Audio Output Level: 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output: +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
