Promotii Doze pick-up

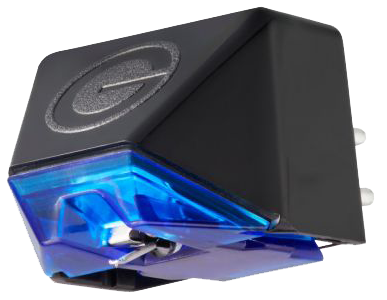

Goldring - peste 60 de ani de experienta in doze magnetice

Doza Moving-Magnet cu ac Eliptic ( 7.6 x 17.8 microni ), Bonded Round Shank, suspensie din aluminiu.

• Montura: 1/2"
• Tensiune de Iesire: 3.5 mV
• Raspuns in frecventa: 20 Hz - 20 kHz +/- 3 dB
• Separatie intre Canale: > 20 dB @ 1 kHz

• Liniaritate: 1.5 dB @ 1 kHz
• Compliance: 20 / nc - S / D@10Hz (mm/N)
• Greutate: 6.9 gr

• Testeaza in showroom Cotroceni

Noua gama Audio-Technica entry-level

Ac eliptic ( 7.6 x 17.8 microni ) - lipit ( Bonded Shank ) / suspensie din Al

Fabricat in China

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 20 kHz
• Separatie intre Canale: 20 dB

• Liniaritate: 2.0 dB
• Compliance: 17 / 7 - S / D (x10-6 cm/dyne)
• Greutate: 6.1 gr

Goldring - peste 60 de ani de experienta in doze magnetice

Doza Moving-Coil cu ac Vital ( tip Line-Contact )

• Montura: 1/2"
• Tensiune de Iesire: 0.5 mV
• Raspuns in frecventa: 10 Hz - 32 kHz +/- 2 dB
• Separatie intre Canale: >30 dB @ 1 kHz

• Liniaritate: <1 dB @ 1 kHz
• Compliance: 25 / 15 - S / D@10Hz (mm/N)
• Greutate: 7.7 gr

Doza Moving-Magnet cu ac eliptic ( 10.16 x 17.8 microni ) - Bonded Round Shank

Montura : 1/2 inch

Curent de Iesire : 5 mV ( 1 kHz, 5 cm/s )

Plaja de Frecvente : 20 Hz - 20 kHz
Separatie intre Canale : 23 dB ( 1 kHz )
Liniaritate : 1.5 dB ( 1 kHz )

Compliance ( Static / Dynamic ) : 18 / 6 ( x 10-6 cm/dyne @ 100 Hz )
Masa dozei : 6.5 grame
Forta de Apasare recomandata: 1.5 - 2.0 g

• Montura: 1/2 inch
• Tensiune de Iesire: 5mV
• Raspuns in frecventa: 20 Hz - 20 kHz
• Separatie intre Canale: 23 dB ( 1 kHz )

• Liniaritate: 1.5 dB ( 1 kHz )
• Compliance: 18 / 6 ( x 10-6 cm/dyne @ 100 Hz )
• Greutate: 6.5 grame

Noua gama Audio-Technica entry-level

Ac MicroLine (2.5 x 75 um) - masiv ( Rounded Nude Shank ) / suspensie din Al

Fabricata in Japonia

• Montura: 1/2"
• Tensiune de Iesire: 3.5 mV
• Raspuns in frecventa: 20 Hz - 25 kHz
• Separatie intre Canale: 23 dB

• Liniaritate: 1.5 dB
• Compliance: 20 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 6.1 gr

Doza magnetica cu ac conic ( lipit ) pe suspensie din ABR ranforsat cu fibre de carbon

• Montura: 1/2 inch
• Tensiune de Iesire: 3.5 mV
• Raspuns in frecventa: 20 Hz - 20 000 Hz

• Liniaritate: 2 dB
• Greutate: 5.7 gr

Noua gama Audio-Technica entry-level

Ac conic ( 15.25 microni ) - lipit ( Bonded Shank ) / suspensie din Al

Fabricat in China

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 20 kHz
• Separatie intre Canale: 18 dB

• Liniaritate: 2.5 dB
• Compliance: 17 / 6.5 - S / D (x10-6 cm/dyne)
• Greutate: 6.1 gr

Noua gama Audio-Technica - dual moving-magnet

Ac eliptic ( 7.6 x 17.8 um) - lipit ( Bonded Shank ) / suspensie din Al

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 23 kHz
• Separatie intre Canale: 27 dB

• Liniaritate: 1.5 dB
• Compliance: 35 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 6.4 gr

• Testeaza in showroom Cotroceni

Noua gama Audio-Technica - dual moving-magnet

Ac MicroLine (2.5 x 75 um) - masiv ( Nude Shank ) / suspensie din Al

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 27 kHz
• Separatie intre Canale: 28 dB

• Liniaritate: 1 dB
• Compliance: 40 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 6.4 gr

Doza Moving-Coil cu ac MicroLine ( 2.5 x 75 microni ) - Nude Square Shank



Fabricat in Japonia

• Montura: 1/2"
• Tensiune de Iesire: 0.3 mV
• Raspuns in frecventa: 15 Hz - 50 kHz
• Separatie intre Canale: 30 dB

• Liniaritate: 0.5 dB
• Compliance: 40 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 6.9 gr

Noua gama Audio-Technica entry-level

Ac eliptic ( 7.6 x 17.8 microni ) - masiv ( Rounded Nude Shank ) / suspensie din Al

Fabricat in Japonia

• Montura: 1/2"
• Tensiune de Iesire: 3.5 mV
• Raspuns in frecventa: 20 Hz - 23 kHz
• Separatie intre Canale: 22 dB

• Liniaritate: 2.0 dB
• Compliance: 20 / 7 - S / D (x10-6 cm/dyne)
• Greutate: 6.1 gr

Doza Moving-Magnet cu ac eliptic ( 10.16 x 17.8 microni ) - Nude Shank

Montura : 1/2 inch

Curent de Iesire : 4 mV ( 1 kHz, 5 cm/s )

Plaja de Frecvente : 20 Hz - 23 kHz
Separatie intre Canale : 25 dB ( 1 kHz )
Liniaritate : 1.5 dB ( 1 kHz )

Compliance ( Static / Dynamic ) : 20 / 7.2 ( x 10-6 cm/dyne @ 100 Hz )
Masa dozei : 6.5 grame
Forta de Apasare recomandata: 1.5 - 2.0 g

• Montura: 1/2 inch
• Tensiune de Iesire: 4 mV ( 1 kHz, 5 cm/s )
• Raspuns in frecventa: 20 Hz - 23 kHz
• Separatie intre Canale: 25 dB ( 1 kHz )

• Liniaritate: 1.5 dB ( 1 kHz )
• Compliance: 20 / 7.2 ( x 10-6 cm/dyne @ 100 Hz )
• Greutate: 6.5 grame

Noua gama Audio-Technica - dual moving-magnet
Ac Shibata (5 x 92 um) - masiv ( Nude Shank ) / suspensie din Al

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 27 kHz
• Separatie intre Canale: 30 dB

• Liniaritate: 1 dB
• Compliance: 40 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 8 gr

Noua gama Audio-Technica entry-level

Ac Shibata (5.5 x 92 um) - masiv ( Rounded Nude Shank ) / suspensie din Al

Fabricat in Japonia

• Montura: 1/2"
• Tensiune de Iesire: 3.5 mV
• Raspuns in frecventa: 20 Hz - 25 kHz
• Separatie intre Canale: 23 dB

• Liniaritate: 1.5 dB
• Compliance: 20 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 6.1 gr

Noua gama Audio-Technica - dual moving-magnet

Ac MicroLine (2.5 x 75 um) - masiv ( Nude Shank ) / suspensie din Al

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 27 kHz
• Separatie intre Canale: 28 dB

• Liniaritate: 1 dB
• Compliance: 40 / 10 - S / D (x10-6 cm/dyne)
• Greutate: 8 gr

Doza Moving-Magnet cu ac eliptic ( 10.16 x 17.8 microni ) - Nude Shank

Montura : 1/2 inch

Curent de Iesire : 3 mV ( 1 kHz, 5 cm/s )

Plaja de Frecvente : 20 Hz - 25 kHz
Separatie intre Canale : 25 dB ( 1 kHz )
Liniaritate : 1 dB ( 1 kHz )

Compliance ( Static / Dynamic ) : 20 / 7.2 ( x 10-6 cm/dyne @ 100 Hz )
Masa dozei : 8 grame
Forta de Apasare recomandata: 1.3 - 1.8 g

• Montura: 1/2 inch
• Tensiune de Iesire: 3 mV ( 1 kHz, 5 cm/s )
• Raspuns in frecventa: 20 Hz - 25 kHz
• Separatie intre Canale: 25 dB ( 1 kHz )

• Liniaritate: 1 dB ( 1 kHz )
• Compliance: 20 / 7.2 ( x 10-6 cm/dyne @ 100 Hz )
• Greutate: 8 grame

Noua gama Audio-Technica - dual moving-magnet

Ac eliptic ( 7.6 x 17.8 um) - masiv ( Nude Shank ) / suspensie din Al

• Montura: 1/2"
• Tensiune de Iesire: 4 mV
• Raspuns in frecventa: 20 Hz - 25 kHz
• Separatie intre Canale: 27 dB

• Liniaritate: 1.5 dB
• Compliance: 35 / 8 - S / D (x10-6 cm/dyne)
• Greutate: 6.4 gr

Doza DJ Hi-Fi cu ac conic ( 15 um ) - Bonded Round Shank

• Montura: 1/2"
• Tensiune de Iesire: 5.5 mV
• Raspuns in frecventa: 20 Hz - 18 kHz
• Separatie intre Canale: 20 dB

• Liniaritate: 2.0 dB
• Compliance: 20 / 6 - S / D (x10-6 cm/dyne)
• Greutate: 6.2 gr

Doza Moving-Magnet cu ac eliptic ( 10.16 x 17.8 microni ) - Nude Shank

Montura : 1/2 inch

Curent de Iesire : 4.5 mV ( 1 kHz, 5 cm/s )

Plaja de Frecvente : 20 Hz - 20 kHz
Separatie intre Canale : 24 dB ( 1 kHz )
Liniaritate : 1.5 dB ( 1 kHz )

Compliance ( Static / Dynamic ) : 18 / 6 ( x 10-6 cm/dyne @ 100 Hz )
Masa dozei : 6.5 grame
Forta de Apasare recomandata: 1.5 - 2.0 g

• Montura: 1/2 inch
• Tensiune de Iesire: 4.5 mV ( 1 kHz, 5 cm/s )
• Raspuns in frecventa: 20 Hz - 20 kHz
• Separatie intre Canale: 24 dB ( 1 kHz )

• Liniaritate: 1.5 dB ( 1 kHz )
• Compliance: 18 / 6 ( x 10-6 cm/dyne @ 100 Hz )
• Greutate: 6.5 grame

Goldring - peste 60 de ani de experienta in doze magnetice

Doza Moving-Magnet cu ac Gyger-S

• Montura: 1/2"
• Tensiune de Iesire: 6.5 mV
• Raspuns in frecventa: 20 Hz - 20 kHz +/- 3 dB
• Separatie intre Canale: >25 dB @ 1 kHz

• Liniaritate: <2 dB @ 1 kHz
• Compliance: 20 / 10 - S / D@10Hz (mm/N)
• Greutate: 6.3 gr
