DAC Meridian Director

Director is a simple way to enjoy Meridian and make all your digital music sound its best.
UPGRADE MUSIC THROUGHOUT YOUR HOME
Director is a high-quality DAC (Digital to Analogue Converter) designed to deliver superior audio quality from any digital source. Built in Britain to the same standards as any Meridian product, Director breathes new life into digital sources when listened to on analogue hi-fi systems.

Director forms the ideal add-on for network players and music servers with digital outputs, bringing Meridian performance and ultimate sound quality to an entirely new class of audio products and systems. These sound enhancing technologies are derived from the award-winning line of Reference 800 Series components, and significantly out-perform the DACs found in computers and most network players.

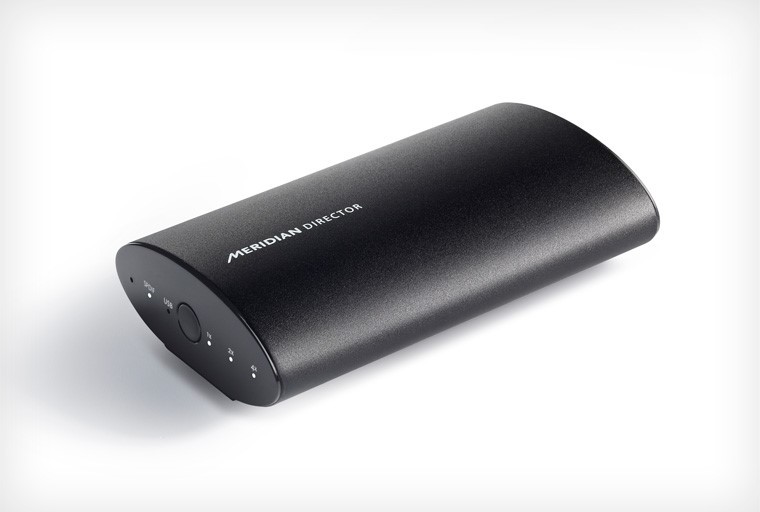

Featuring an all-metal elliptical case, Director echoes design elements immediately identifying it as a Meridian product. Each side has molded end caps that provide connections as well as source choice and resolution.

Director is designed to connect to any analogue hi-fi or audio system with its own volume control, and is particularly appropriate for installation environments. It is bit-precise for the ultimate in sound quality and delivers the lowest possible distortion and modulation noise, with predictable quality. Director is handmade in the UK with the same precision and craftsmanship as every Meridian product.

Simply connect your PC or digital component and upgrade to Meridian sound

Power over USB connection, either from PC or from supplied power supply

Push button source selection for simple operation

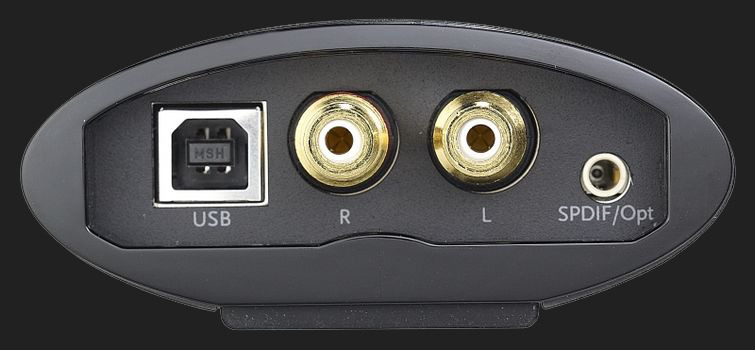

High quality RCA analogue connectors for secure connection to system

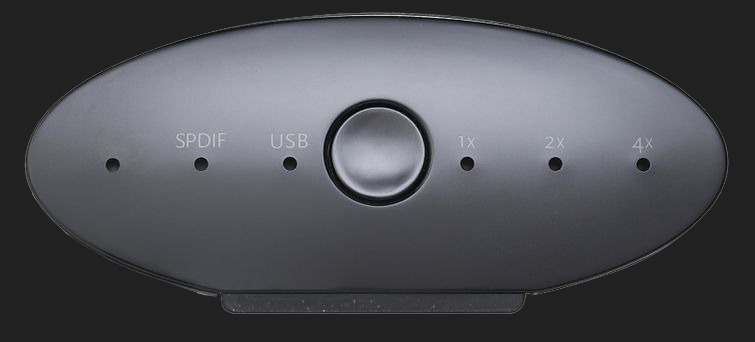

LEDs indicate source sample rate

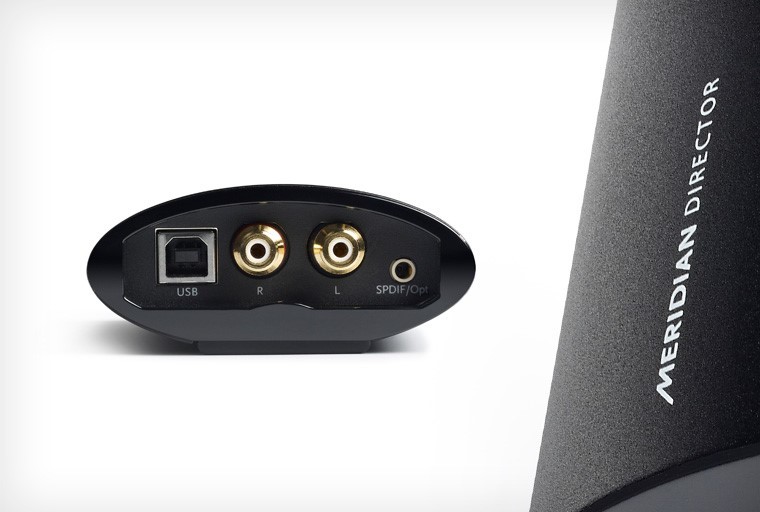

Features S/PDIF optical and coax as well as USB inputs

Resolution Enhancement including upsampling with Apodising

192kHz fixed-level analogue output

4-layer circuit board with audiophile-grade components throughout

Asynchronous USB Audio Class Compliant 2.0 HS 480Mb/s for best-in-class performance

USB-powered: plugs into any computer with a USB port

As with all Meridian products, our goal in developing the Director is to help you enjoy the music you love with the very highest quality playback, without compromise, using innovative engineering and technology.

Director supports sample rates up to 24-bit, 192kHz and incorporates Meridian Resolution Enhancement technologies, including Meridian Upsampling and the Apodising filter, improving audio quality. The proprietary Apodising filter results in a purer sound, and can also clean up some recording faults, particularly in earlier digital recordings. Standard sample rate signals (16–24 bit, 44.1/48kHz) are automatically upsampled to 24- bit 88.2/96kHz. Separate precision reference oscillators are included for sample rates based on 44.1 kHz and on 48 kHz, minimising jitter. The DAC itself offers extremely low modulation noise and distortion, and incorporates the highest quality components throughout, including audiophile grade capacitors, resistors and gold-plated phono sockets. Some features of the design are based directly on circuitry and components used in Meridian’s Reference 800 Series.

Provides plug-and-play operation with Macintosh computers; a driver is required for Windows (XP or later): this is the same driver used for the Explorer DAC. In USB mode, Director uses asynchronous transfer for the best sound quality.
