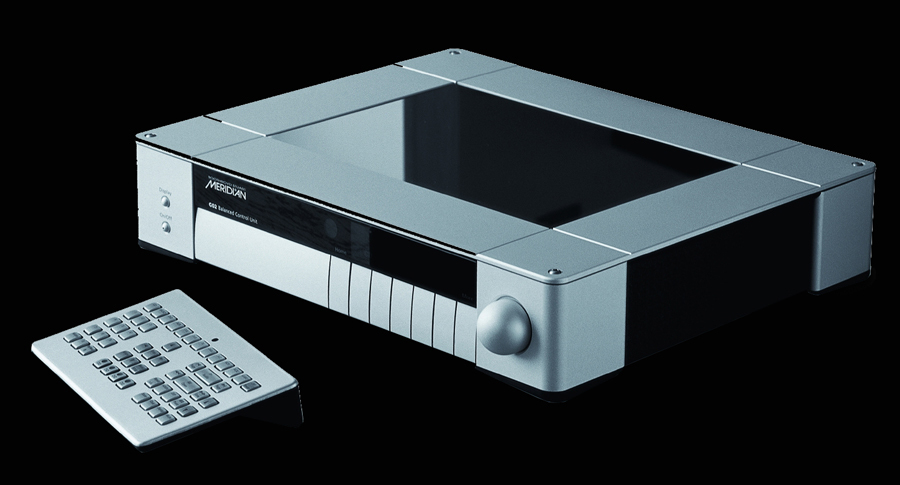

The G02 is Meridian's balanced preamplifier/controller and forms the core of a premium Meridian analogue stereo system. Add balanced or unbalanced sources and connect the outputs to a Meridian power amplifier and passive speakers to complete your system. The G02 features true dual-mono construction and provides seven two-channel analogue inputs: four unbalanced, and three balanced on XLRs. The G02 is balanced internally throughout: unbalanced inputs are immediately electronically balanced for maximum quality throughout the signal chain. The G02 features a specially-designed dual differentially-balanced volume control circuit. This ensures perfect stereo tracking and full frequency range performance at all volume levels. The G02 can be ordered with MM or MC mic preamp built-in.

Prezentare generala Meridian G02 Balanced Dual Mono Control Unit

The G02 features true dual-mono construction and provides seven two-channel analogue inputs: four unbalanced, and three balanced on XLRs. The G02 is balanced internally throughout: unbalanced inputs are immediately electronically balanced for maximum quality throughout the signal chain.

The G02 features a specially-designed dual differentially-balanced volume control circuit. This ensures perfect stereo tracking and full frequency range performance at all volume levels. The G02 can be ordered with MM or MC mic preamp built-in.

Specificatii tehnice pentru Meridian G02 Balanced Dual Mono Control Unit

Alte caracteristici:

Distortion: Less than 0.01% input to output

Signal/Noise: Better than –96dB CCIR (1V output, normal input) Better than –70dB for MM input, –60dB for MC.

MM option: Sensitivity adjustable 0.5–17mV rms for 5cm/s @ 1kHz. Overload point 47mV @ 1kHz. Cartridge load 47kΩ + 100 pF

MC option: Sensitivity adjustable 38–210µV rms for 5cm/s @ 1kHz. Cartridge load 220Ω + 10nF

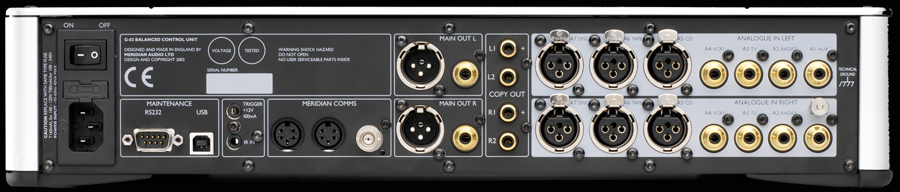

Inputs: 4 unbalanced on phono, 0.5–2.5V rms in four steps, impedance 20kΩ3 balanced on XLR-3F, 0.5–2.5V rms in four steps, impedance 20 kΩ, bi-phase

Main Outputs: 1 unbalanced on phono, 0–3V rms maximum, 47Ω im-pedance; 1 balanced on XLR-3M, 0–3V rms bi-phase, 47Ω impedance

Copy output: 2 unbalanced on phono, 1.5V rms, 47Ω impedance; Can be configured as 1 balanced output.

Comms: Two 5-pin 240° DIN sockets, BNC socket, RS232 and USB comms interfaces

Construction: Two-channel dual-mono construction. Audiophile-grade components used throughout. Large low-field ultra-linear power supply. Meridian black or silver finish in metal & glass

Dimensiuni:

Width: 440mm (17.32in); Depth: 350mm (13.78in) plus connectors; Height: 90mm (3.54in)
